- Measurements: Classic Solo seating:Â 12″ wide x 15.5″ long
- Close Solo seating:Â 12″ wide x 14″ long

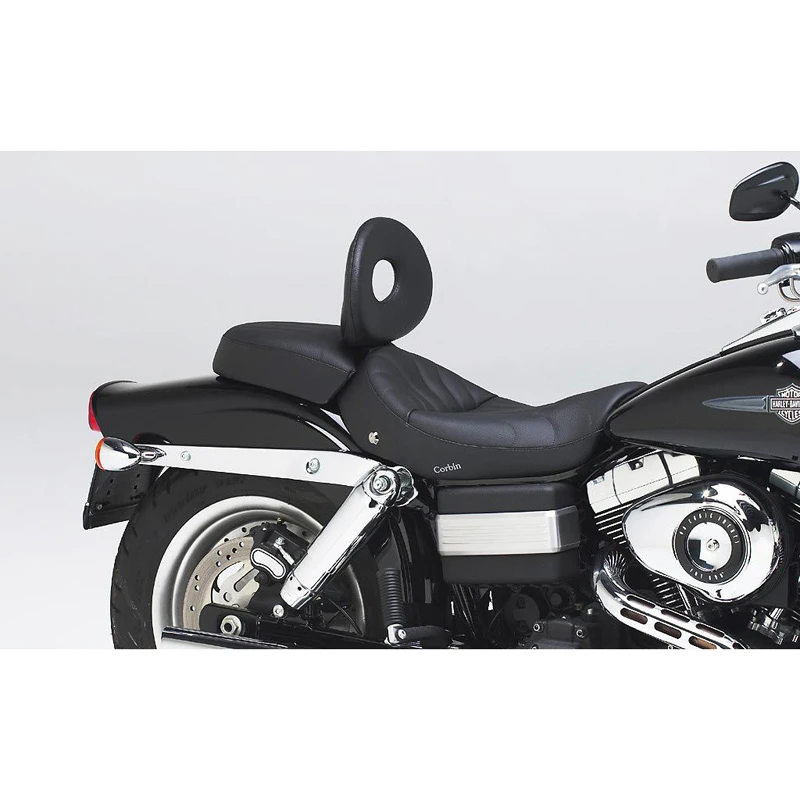

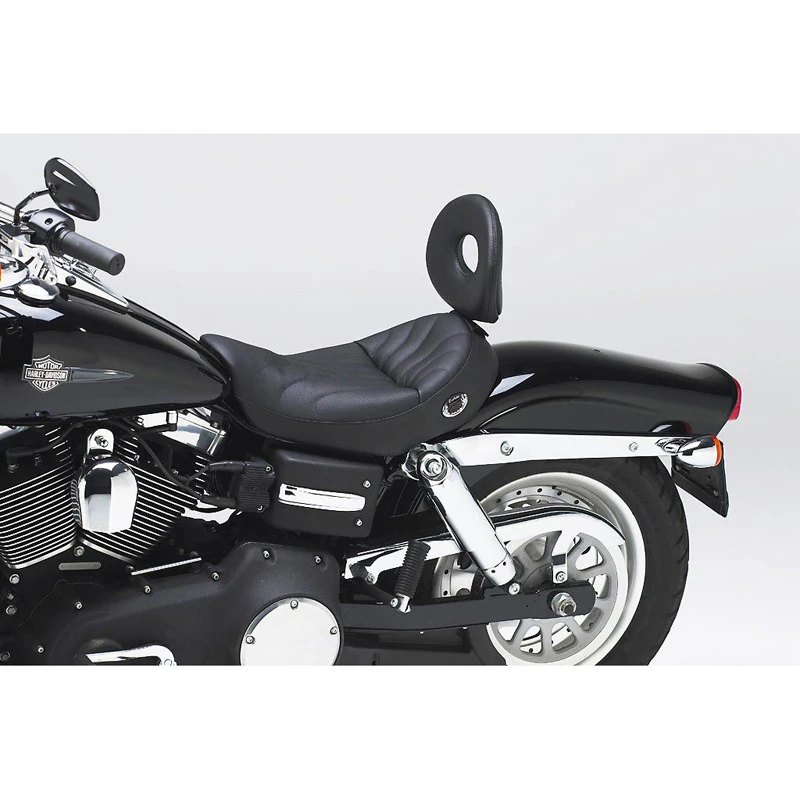

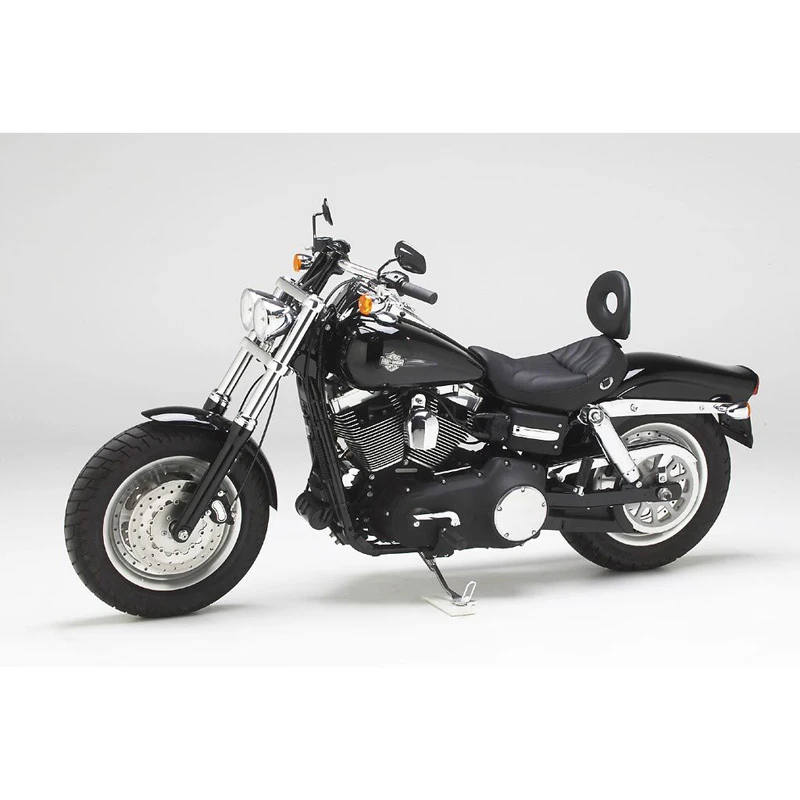

- Rider back support w/ #02-S:Â 10″
- Touring Pillion:Â 9″ wide x 9″ long

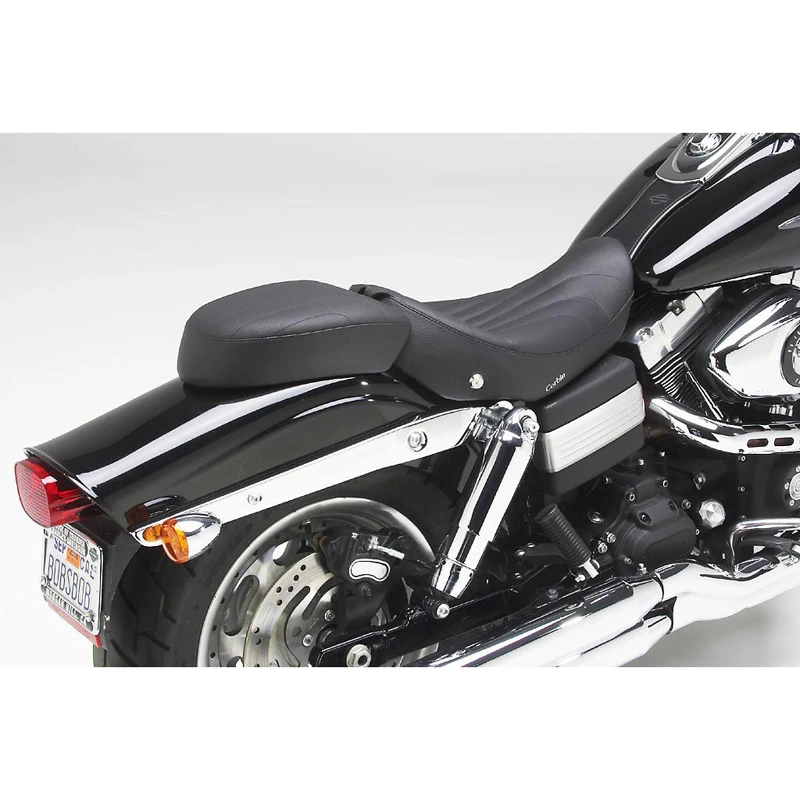

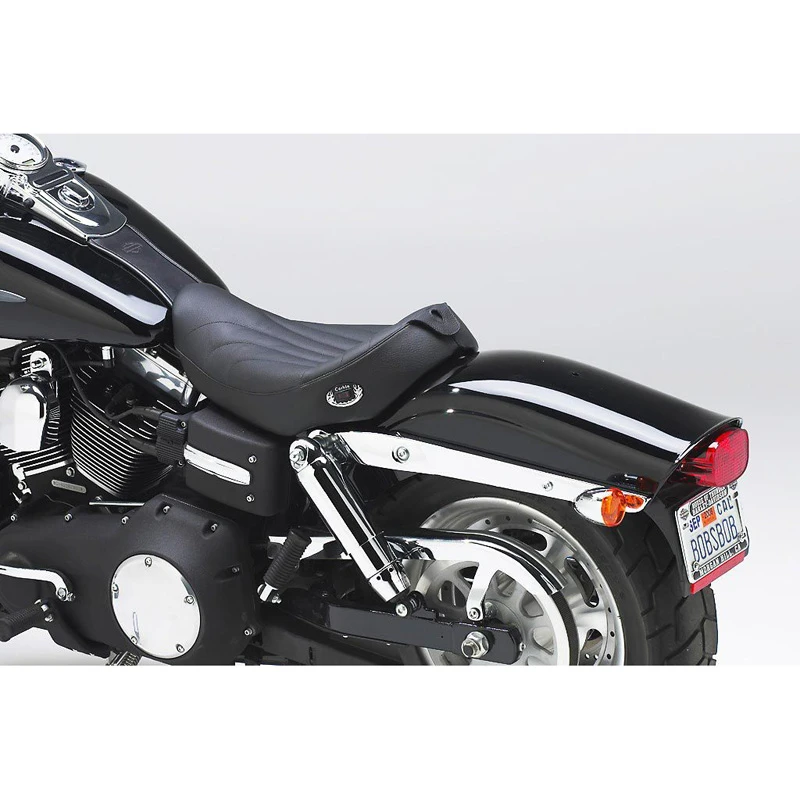

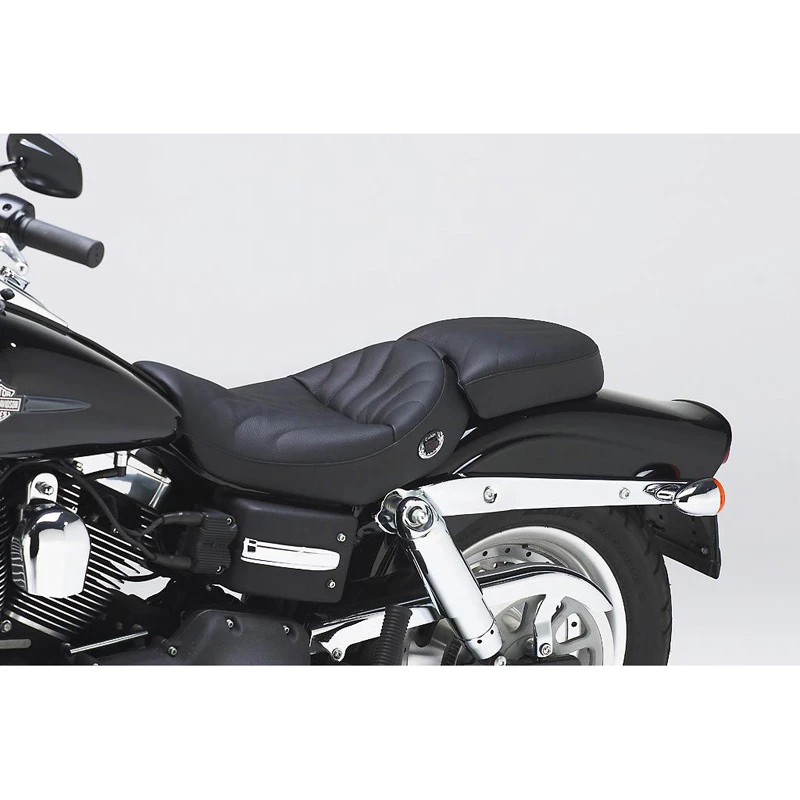

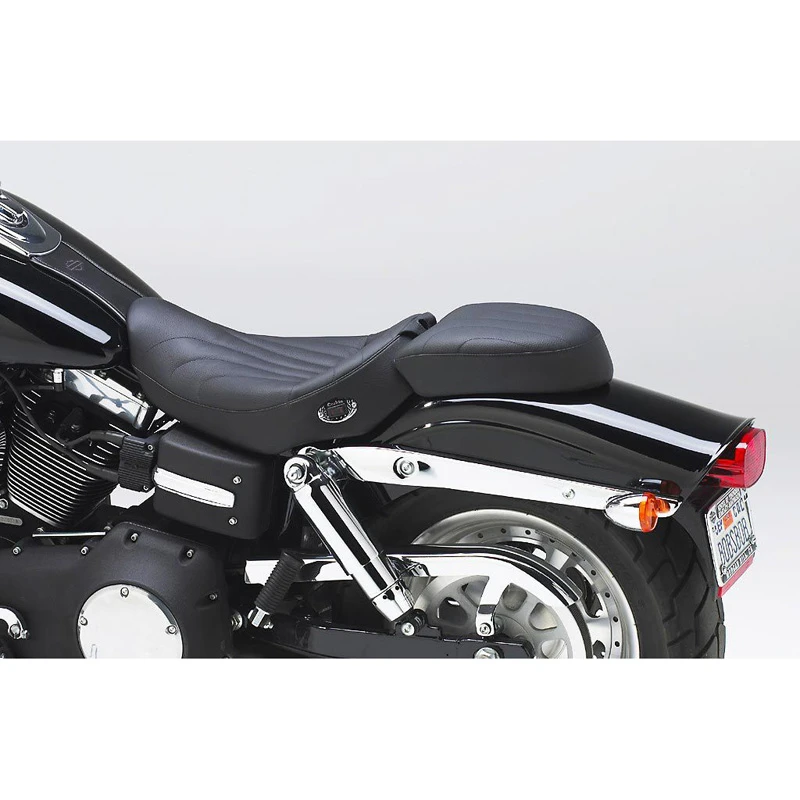

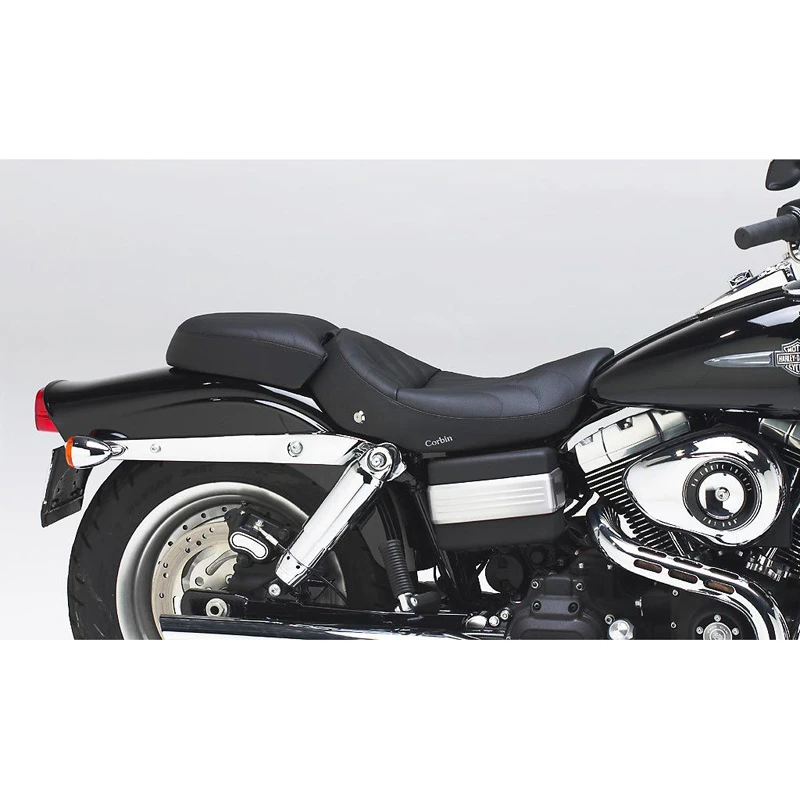

- Corbin Classic Solo and Passenger pillion for Harley-Davidson Fat Bob Dyna-Glide.

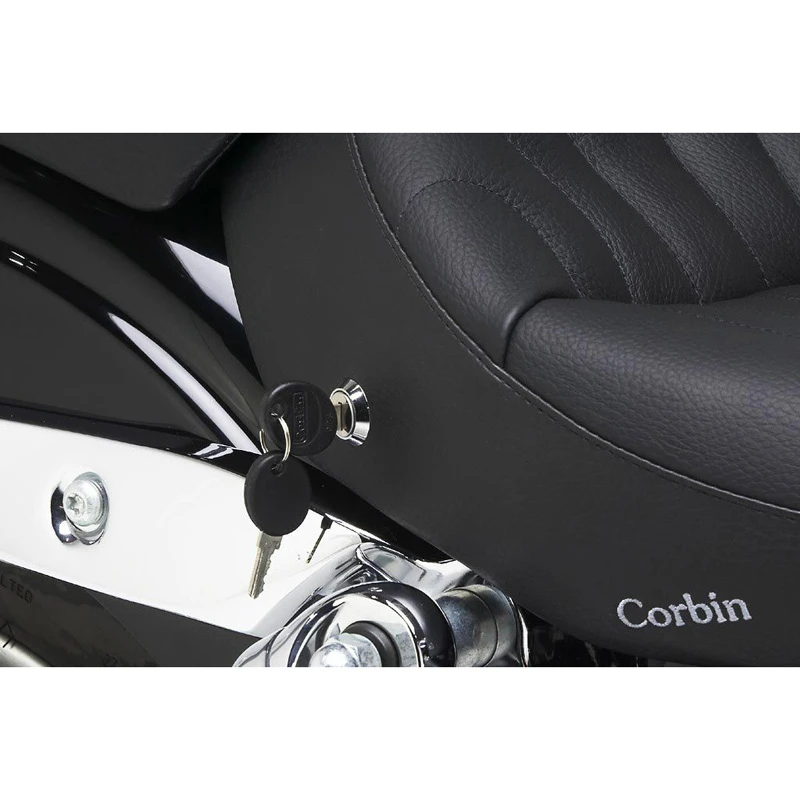

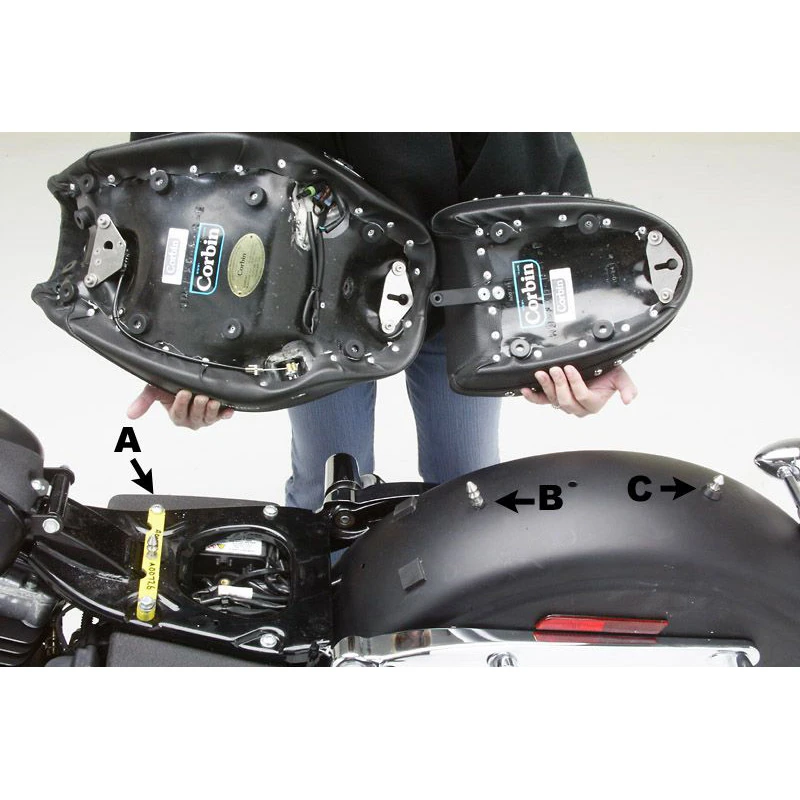

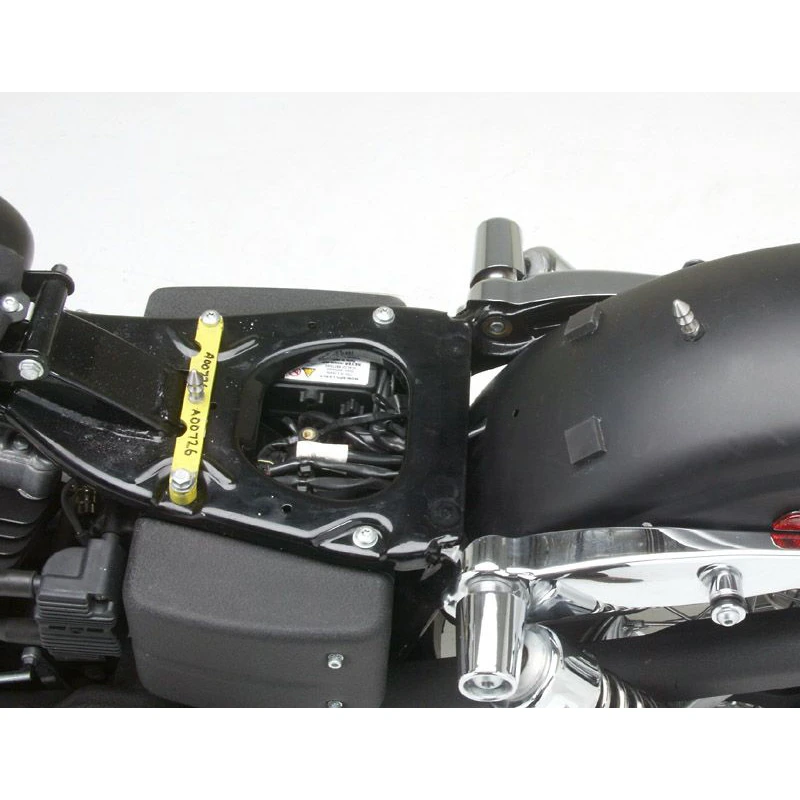

- Classic solo and pillion pad install on a new Corbin keylock system. All brackets and required hardware is included. In image: Solo seat latch bracket “A”, Rear mounting stud for Solo seat “B” and Rear mounting stud for pillion seat “C”.
- Pillion Pad:Â Install the Rear mounting stud into your fender. Slide the keyhole style latch (bottom of pillion seat) onto the stud and secure the front of the pillion seat with the Solo Seat mounting stud as shown.
- Solo saddle:Â Mounts in the same fashion as the pillion seat with a keyhole latch under the saddle. If pillion seat is installed, secure the seat on the lower catch of the stud. If no pillion seat, secure onto the higher catch of the stud. Now lower the nose of the saddle onto the latch bracket and push down until you hear two clicks.
- Pillion pad will not work with the #56802-06 fender mounted Bobtail Fender Rack available as an accessory item from H-D.

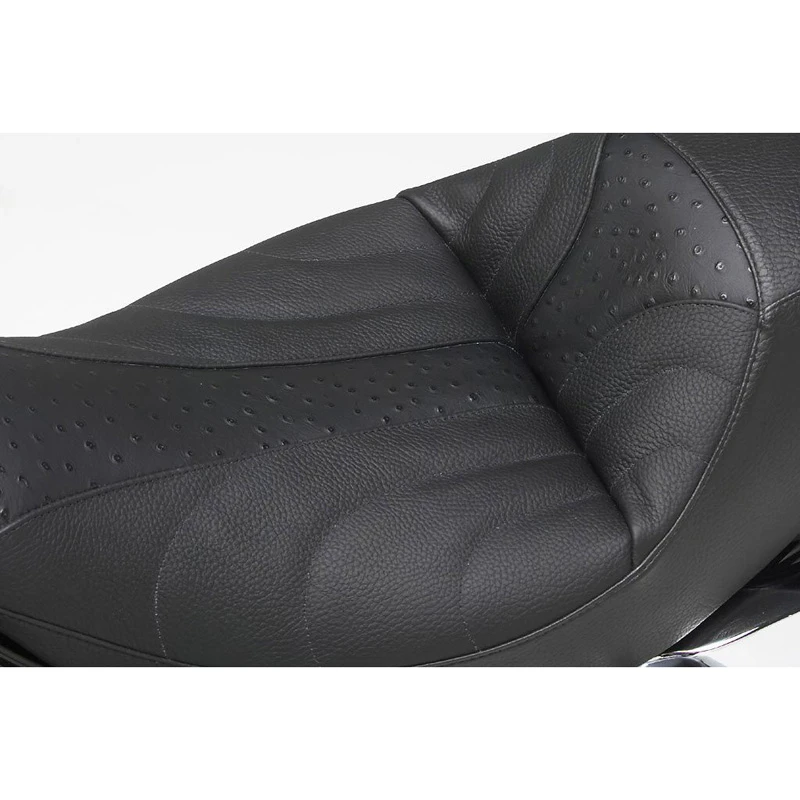

- Corbin saddles (with very few exceptions) include Genuine Leather Seating to provide a luxurious look and feel.
