- Measurements: Classic Solo seating: 14″ wide x 16″ long
- Back support: 5″ w/o backrest, 14″ with #02-S backrest

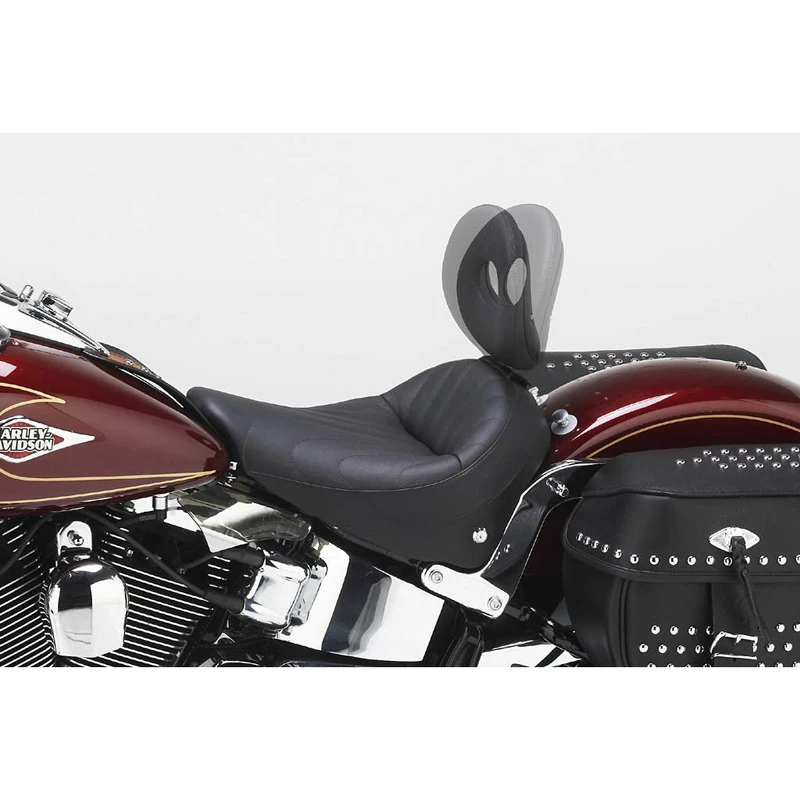

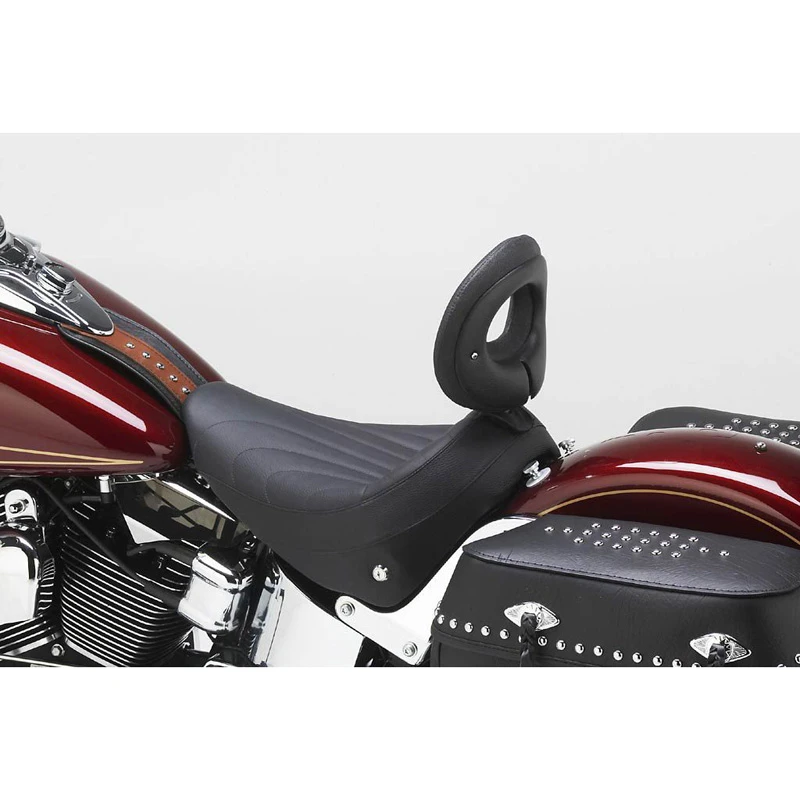

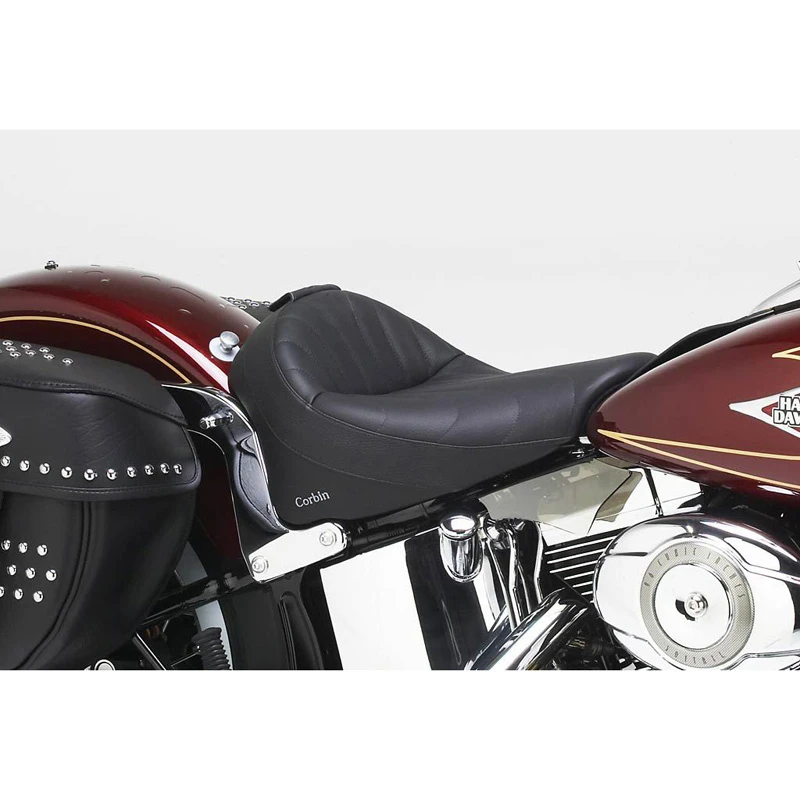

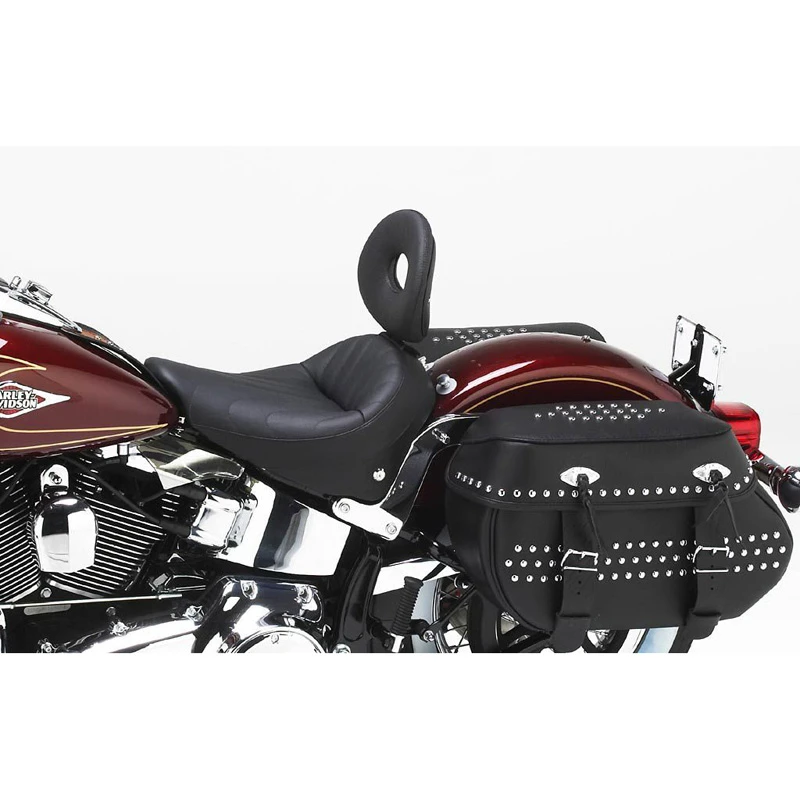

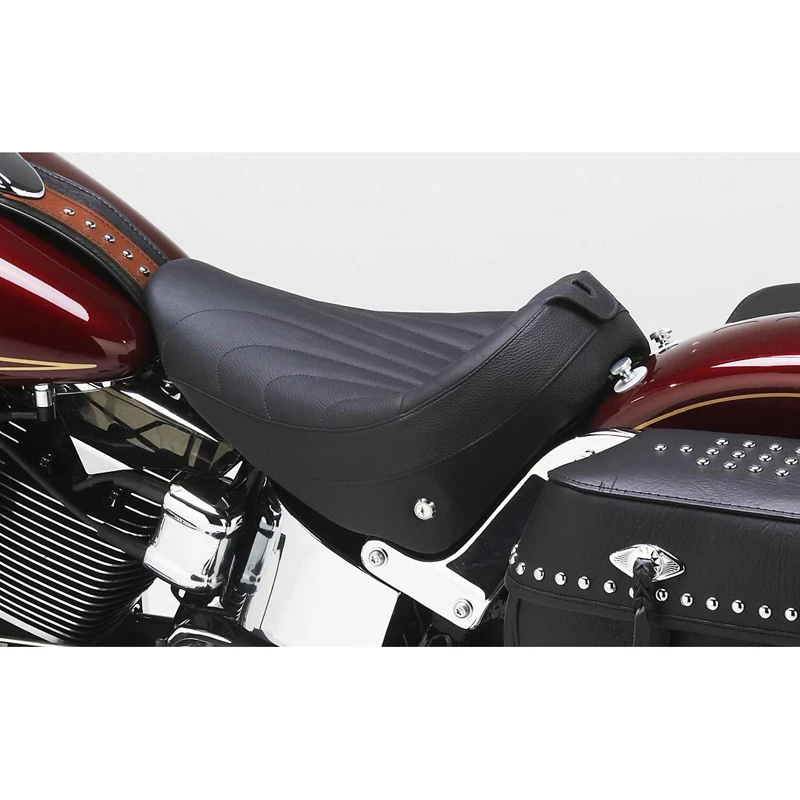

- Corbin Classic Solo and Pillion for Harley-Davidson Softail Deluxe and Heritage Classic.

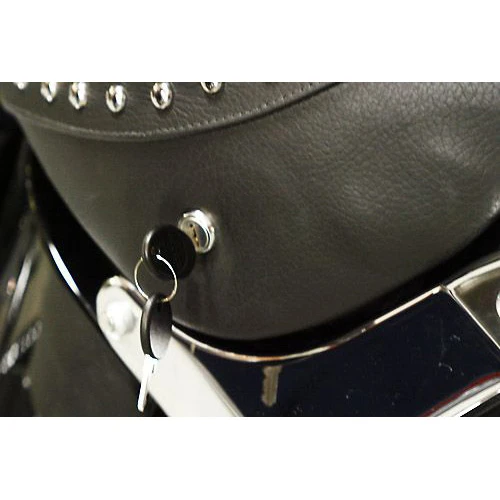

- Installation: Corbin’s Classic Solo mounts with a new key lock system. We include two brackets that bolt up to stock locations on your chassis. Once installed, the seat will install and remove with a simple key lock.
- Classic solo installs by sliding the rear seat tab into the Corbin bracket installed on the H-D fender. Then just lower the front of the saddle onto the stainless steel lock pin located near the tank mount. Both of these are simple to install and well within the skills of the weekend mechanic.

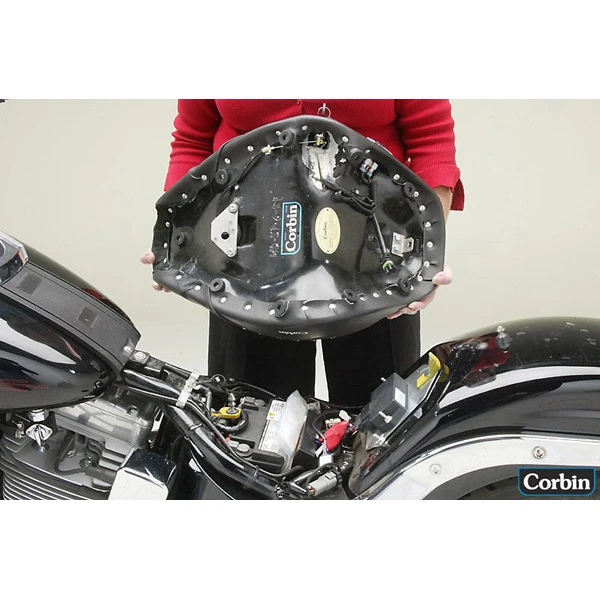

- If the main fuse is in the way of installing the bracket, shift it over the battery. The basepan will have a small groove allowing space for the fuse. Shown in the image to the right, move the fuse from point “A” to point “B”.
- The 2011 model comes with a thicker leather tank panel which may cause the front tongue to have difficulty catching the chassis. This is easily fixed by adding a slight downward bend to the seat’s front tongue. You can easily do this with an adjustable wrench and a little pressure.
- NOTE: This saddle does not fit the 2014 CVO Deluxe.
- Corbin saddles (with very few exceptions) include Genuine Leather Seating to provide a luxurious look and feel.
