Corbin V-HAM-DT Dual Touring Seat For Victory Hammer (2005-2016)

Corbin V-HAM-DT Dual Touring Seat For Victory Hammer (2005-2016) - Image 2

Corbin V-HAM-DT Dual Touring Seat For Victory Hammer (2005-2016) - Image 3

Corbin V-HAM-DT Dual Touring Seat For Victory Hammer (2005-2016) - Image 4

Corbin V-HAM-DT Dual Touring Seat For Victory Hammer (2005-2016) - Image 5

Corbin V-HAM-DT Dual Touring Seat For Victory Hammer (2005-2016) - Image 6

Corbin V-HAM-DT Dual Touring Seat For Victory Hammer (2005-2016) - Image 7

Corbin V-HAM-DT Dual Touring Seat For Victory Hammer (2005-2016) - Image 8

Corbin V-HAM-DT Dual Touring Seat For Victory Hammer (2005-2016) - Image 9

Corbin V-HAM-DT Dual Touring Seat For Victory Hammer (2005-2016) - Image 10

Corbin V-HAM-DT Dual Touring Seat For Victory Hammer (2005-2016)

Name: Corbin V-HAM-DT Dual Touring Seat For Victory Hammer (2005-2016)
SKU: CBN-V-HAM-DT
Availability: InStock

Original price was: $351.00.Current price is: $97.99.

Seating Panels

Side Panels

Welts

Stud Bands

Studs

Stitch Color

Logo Color

Clear

SKU: CBN-V-HAM-DT Categories: Hammer, Seats and Seat Covers, Victory

Multiple safe payment methods
Easy, Fast Returns Guarantee
Sustainable materials, for a better tomorrow.
Service with a smile, always online.

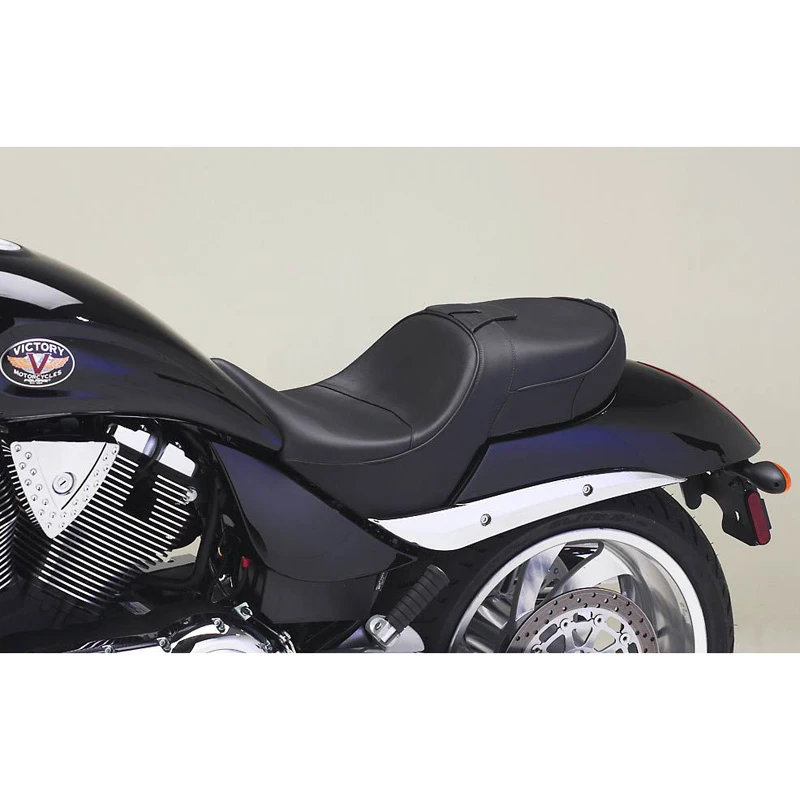

Corbin’s V-HAM-DT Dual Touring Seat is made specifically for Victory Hammer (2005-2016).

Features:

Measurements: Rider Seating: 14″ wide x 15″ long x 7″ deep
Depth w/ : 17″
Passenger: 12.5″ wide x 11″ long
Corbin Dual Touring saddle for Victory Hammer.
Dual Touring saddle installs easily on your bike using existing positions on your bike. All installation hardware is include so your new saddle is ready to go right out of the box.

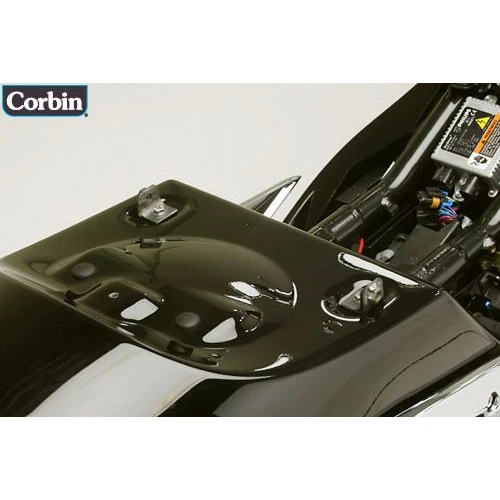

First install the provided mounting tabs into the fender as shown. Use a little locktite on each bolt and tighten to 8 ft lbs.

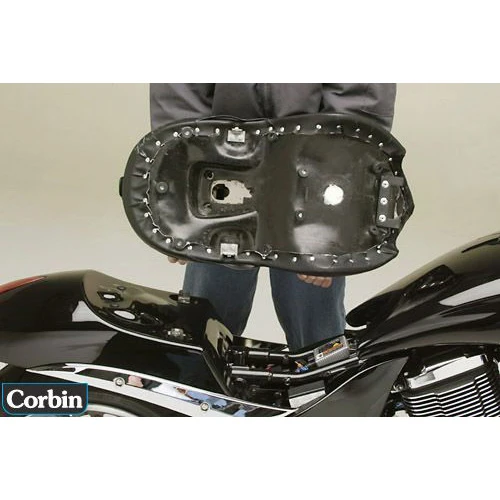

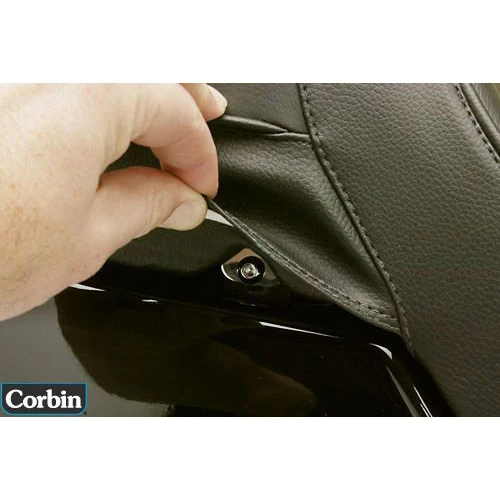

Now slide the saddle into position with the tongue in front going into your chassis near the ignition box. Notice we do NOT use the rubber holder on top of the chassis. Lower the rear of the saddle into place and secure to the previously installed brackets. There is a small skirt on the saddle’s side to allow access to these bolts. Tighten to 8 ft lbs.

Corbin saddles (with very few exceptions) include Genuine Leather Seating to provide a luxurious look and feel.

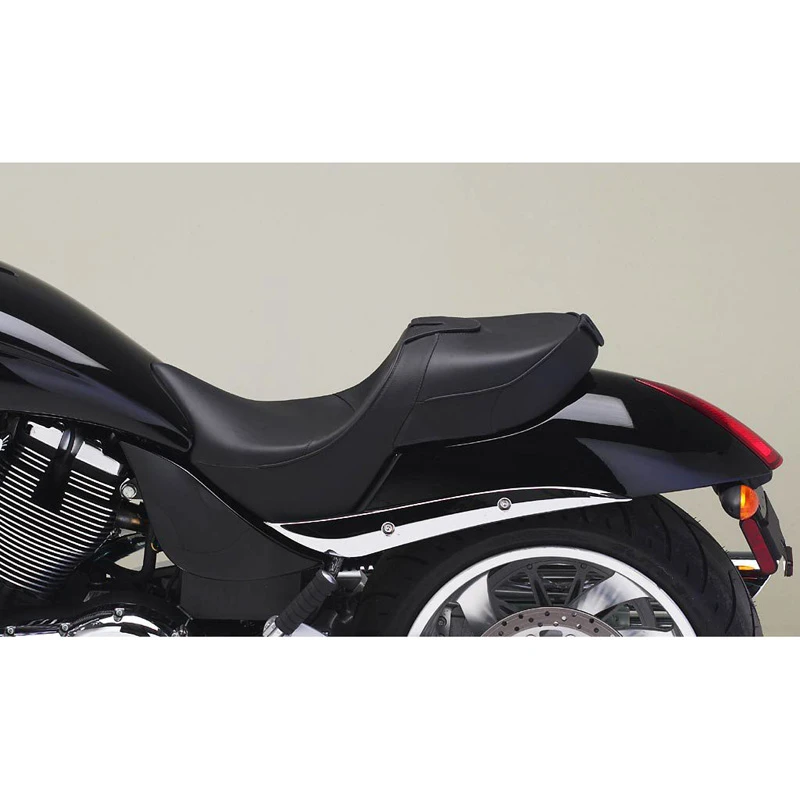

Corbin has a long history of designing saddles that look as well as they perform and the Hammer Dual Tour is no exception. This saddles offers incredible comfort gains that look good on the bike. Notice how well the saddle fits to the tank and fender groove and provides two large seating buckets that don’t overpower the bike visually. We sculpt each seating area for proper weight distribution and allow long range capability. Generously contoured platforms eliminate hot spots and centralized pressure that causes discomfort. On the inside, our exclusive Comfort Cell® foam material gives firm support that conforms to your body.

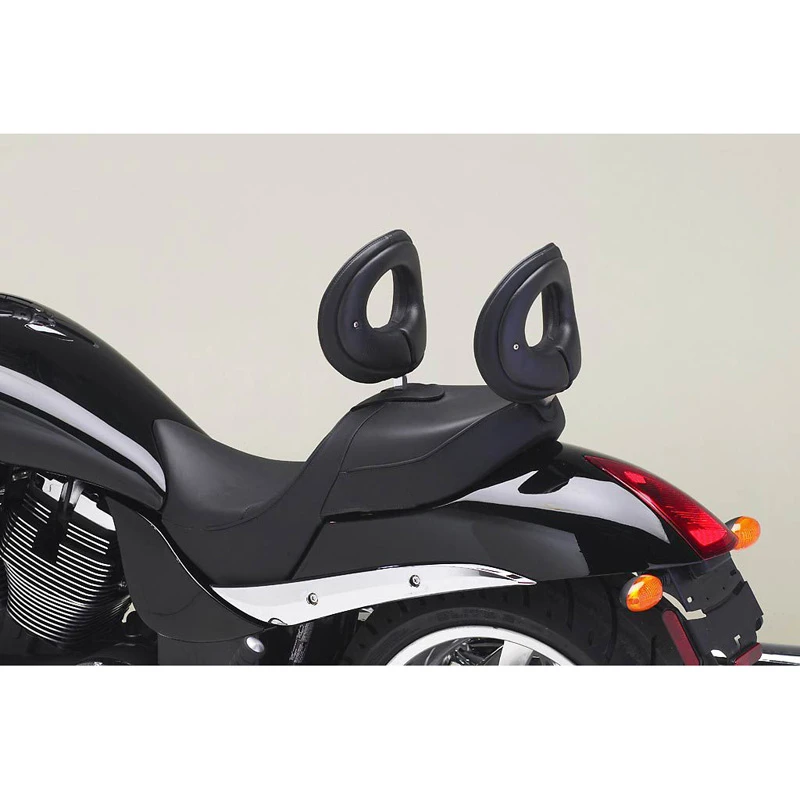

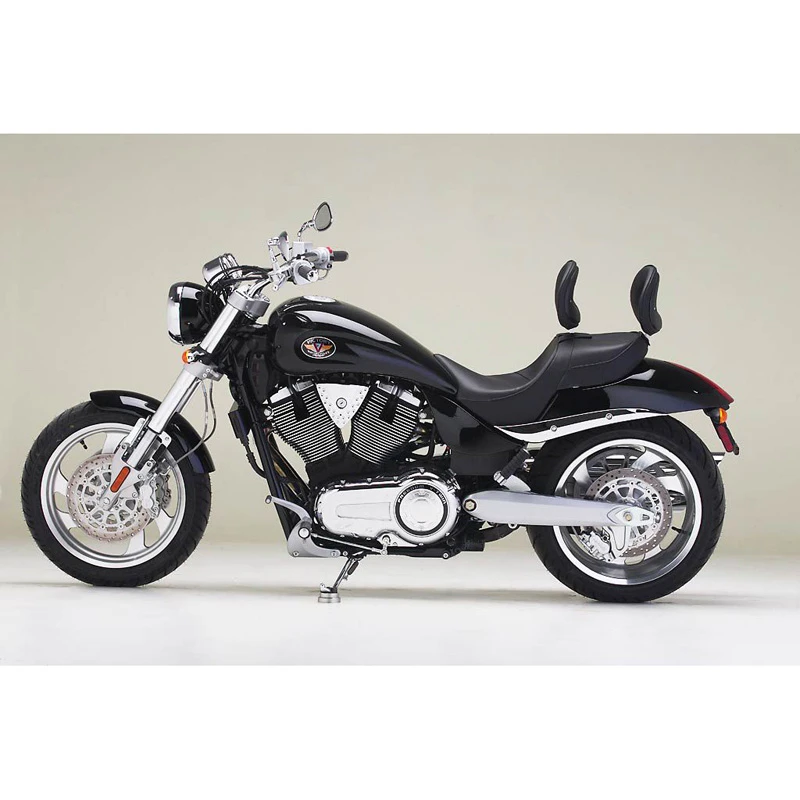

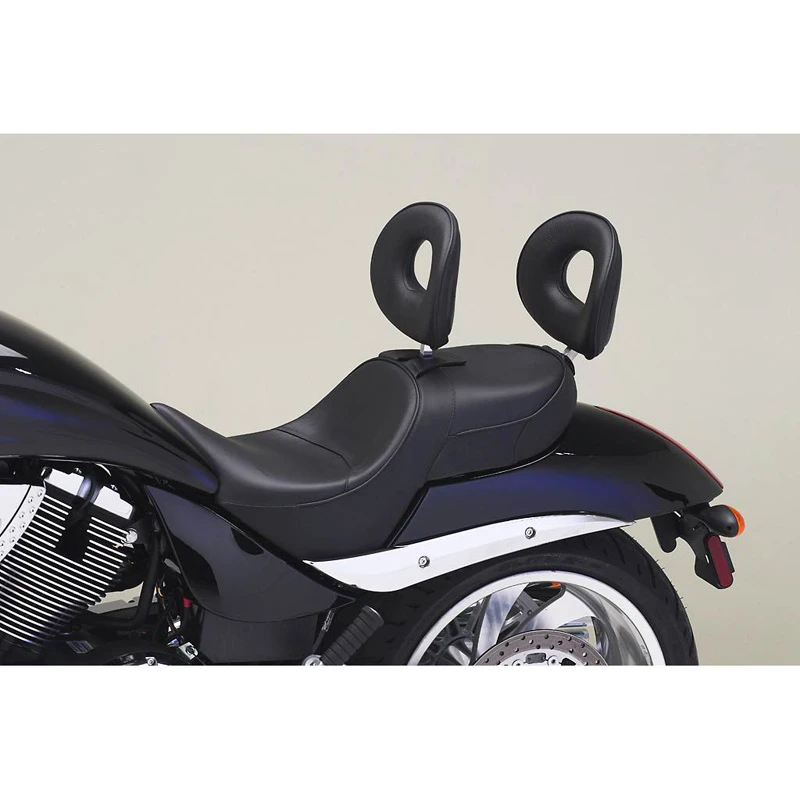

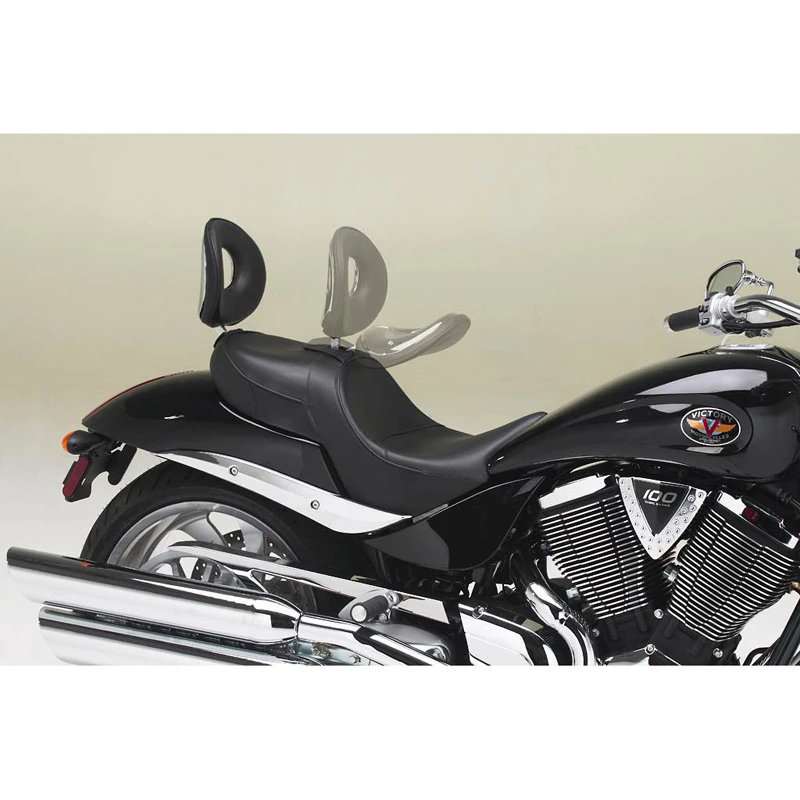

The Dual Touring Saddle accepts two removable rider’s backrests for added back support. Our backrests are fully adjustable to provide a tailored fit to individual’s posture. Support hardware is internal to the saddle to keep a clean look without external contraptions. In the front, we’ve engineered a second adjustment that allows the position of the rest to be adjusted fore/aft. This special hardware also allows the backrest to fold down to ease mounting the bike.

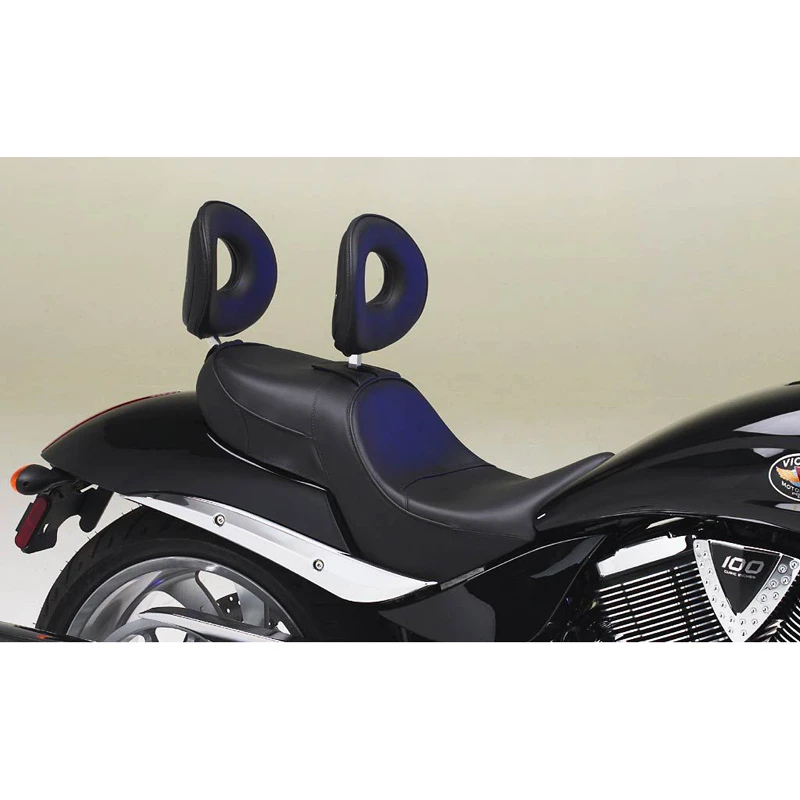

You can use a single backrest that transfers front to back as needed or get two backrests for full time use. Simply slide the backrest shaft into the built in hardware and secure it in place with the provided setscrew. Saddle must be removed in order to set the safety screw in the passenger backrest. Once the backrest is installed, all adjustments can be performed without removing the saddle. Like the saddle, Corbin backrests and sissy bar pads are shaped to fit the curve of your body for a better fit and greater comfort.

The ergonomic design of the Dual Touring saddle also gives a nice flowing shape on the bike for a clean look. Inside the saddle, Corbin’s Comfort Cell® foam provides a nice firm perch that supports your body indefinitely and doesn’t cave in like softer materials. Comfort Cell Cell® feels firm when you first ride on it, but it is this support that gives you daylong comfort. Notice also, the amount of vertical support offered by the bucket design of the Corbin saddle… over 7″ of vertical support or 17″ with the backrest installed!

We use genuine leather seating panels for a luxurious ride that breathes with your body. Leather is extremely durable and will break in along with the foam shape to conform to your body. Saddle comes standard in all plain black for a look as tough as the bike itself. Be sure to care for your leather saddle properly with a quality conditioner like our Saddle Cream. This will help the hied to resist the elements and remain supple. The leather seating will conform along with the foam shape and provide a personalized fit to your posterior. Over time, your leather saddle will develop its own unique character just like your leather jacket does.

Corbin’s Ovalbac backrest design (shown) has removable finishing plates on the rear that gives you a nice customizing option. Backrests come standard with an ABS plate that gives a leather look, but are also available in a Carbon Fiber or Aluminum look or even primer for custom painting. For a little extra, we can even supply a backing plate that is pre-painted gloss black or even chrome.

If you’re looking to add a little storage space to your Hammer how about a cool new glovebox for the rear of your Ovalbac backrest (#02-S only). Designed to carry four liters of your essential stuff like cell phones, spare gloves, bottled water, maps and sunglasses. Constructed of durable ABS and painted gloss black for a perfect finish. You can leave this mounted on your backrest full time or swap it with a regular finishing plate as needed. Installation is just two screws! Comes fully lined and weather stripped with two keys.

It all started with a Norton Atlas over 50 years ago Now the Corbin name is synonymous with Quality, Hand Crafted motorcycle saddles worldwide. Hand built with pride in the USA using proprietary, purpose built materials and patented manufacturing processes. Unique, cutting edge designs that provide the perfect blend of form and function.
Over 1,400 part numbers means they offer more applications across more brands and models than any other motorcycle seat maker. Trends come and go, but quality never goes out of style.
Corbin offers more than 70 color and texture options for your custom build motorcycle seat at no additional charge. Corbin saddles include genuine leather seating for a truly luxurious ride that will last for years to come. Build your seat any way you like from mild to wild.
Corbin is proud to support the Championship winning team of Jared Mess and join forces with Memphis Shades to field up and comer Cole Zabala in the 2022 season.

Specifications:

UNIQUE TECHNOLOGY: The design and manufacture of Corbin products is so unique that Mike Corbin himself holds more than 60 United States Patents! From the process itself to new innovations like the Corbin Glovebox, you can count on highly functional and unique products that work. Corbin products are manufactured under one or more of the following US Patents: 6,848,156 B2; 6,729,516 B2; D 489,540S; 6,655,740 B1; 6,422,648 B1; 5,544,937; 5,608,957; 4,953,911; D545,073S & 6,971,714 B1.

FIBERTECH BASEPAN: A purpose built, hybrid material that provides a firm foundation to support the carefully designed ergonomics of the Corbin saddle. Provides a precision fit to every arc and contour of the machine and rides on rubber bumpers to protect your paint. We always design our basepans as flat as possible so bumps or odd shapes don’t telegraph through the foam to your body.

COMFORT CELL FOAM: The heart of the Corbin saddle! Our exclusive, purpose built foam material, called Comfort Cell, was created to provide a firm, resilient ride that doesn’t break down. This means it will support you for long days on the road. Over time, Comfort Cell will break in to provide a personalized fit to your posture and even greater comfort

ERGONOMIC SHAPING: A major part of the design criteria of the Corbin saddle is the Ergonomic shape. This means the saddle’s foam shape is designed to emulate the curves of the human body. This provides more square inches of body contact and helps to eliminate hot spots. This shaping also neutralizes the seating platform to help curb sliding in the saddle which reduces fatigue. In a nutshell… more comfort for a longer ride!

PATENTED MANUFACTURING TECHNOLOGY: Always an innovator, Mike Corbin invented Integrated Molding technology which is now the process by which all Corbin saddles are made. This process allows extremely tight tolerances and creates a chemical bond between the foam and base material.

GENUINE LEATHER: We use leather in all panels of the seat that contact your body. This provides a luxurious ride that breathes with your body. Leather will also break in along with the foam shape to support the personalized fit. Available in a wide range of textures and styles to suit your taste.

CORBIN BACKREST SYSTEM: The first and most versatile removable backrest system available for motorcycles! Corbin’s backrests provide added vertical back support and long range comfort. Supported by internal hardware for a very clean look. Backrests adjust to rider’s profile for a tailored fit and install or remove easily as desired.

Seating Panels	Black Leather, Asphalt vinyl, Black Vinyl, Black Baby 'Alligator' leather, Black 'Alligator' leather, Black Shiny 'Alligator' leather, Black 'Alligator' vinyl, Black Carbon-Fiber leather, Black Carbon-Fiber vinyl, Black Grabber vinyl, Black 'Ostrich' leather, Black 'Ostrich' vinyl, Black 'Snake', Blue Carbon-Fiber vinyl, Bomber Jacket leather, Smoke Bomber Jacket, Burgundy vinyl, Camo vinyl, Carbonium, Charcoal Gray vinyl, Charcoal Carbon-Fiber vinyl, Chocolate Brown leather, Classic (Basketweave) leather, Candy Red vinyl, Cognac vinyl, Crimson vinyl, Emerald Green vinyl, Fuschia vinyl, Forest Green vinyl, Ghost Gray vinyl, Gold vinyl, Goldenrod vinyl, Gray Bomber Jacket, Gray leather, Gray Partner's vinyl, Gray 'Ostrich' leather, Gunmetal Vinyl, Harley Blue vinyl, Indian Brown 2017, Interceptor Blue vinyl, KTM Orange vinyl, Lavender vinyl, Lime Green vinyl, Matte Black, Metalflake Blue, Metalflake Burgundy, Metalflake Charcoal, Metalflake Fuschia, Metalflake Gold, Metalflake Green, Ninja Red vinyl, Navy Blue leather, Orange vinyl, Otter Brown vinyl, Oxblood vinyl, Pigeon Gray vinyl, Purple vinyl, R-80 Red vinyl, Red Bomber Jacket Leather, Red Carbon-Fiber vinyl, Red Natural Leather, Royal Blue vinyl, Scout Brown leather, Silver Carbon-Fiber vinyl, Sky Blue vinyl, Smoke Gray vinyl, Tan Bomber Jacket, Tan leather, Tan 'Ostrich' leather, Taupe vinyl, Teal vinyl, Tomato Red vinyl, Trexx Black vinyl, Trexx Gear vinyl, White vinyl, Yellow, Yellow Carbon-Fiber
Side Panels	Black, Asphalt, Black 'Alligator' vinyl, Black Carbon-Fiber, Black Grabber, Black 'Ostrich' vinyl, Blue Carbon-Fiber, Bomber Jacket BROWN, Smoke Bomber Jacket, Burgundy, Camo vinyl, Candy Red, Carbonium, Charcoal Gray, Chocolate Brown, Classic (Basketweave), Cognac, Crimson, Emerald Green, Fuschia vinyl, Forest Green, Ghost Gray, Gold, Goldenrod, Gray Bomber Jacket, Gray leather, Gray Partner's, Gunmetal Vinyl, Harley Blue, Indian Brown 2017, Interceptor Blue, KTM Orange, Lavender, Lime Green vinyl, Matte Black, Metalflake Blue, Metalflake Burgundy, Metalflake Charcoal, Metalflake Fuschia, Metalflake Gold, Metalflake Green, Ninja Red, Navy Blue, Orange, Otter Brown, Oxblood, Pigeon Gray, Purple, R-80 Red, Red Bomber Jacket, Red Leather, Red Carbon-Fiber, Royal Blue, Scout Brown leather, Silver Carbon-Fiber, Sky Blue, Smoke Gray, Tan Bomber Jacket, Tan leather, Taupe, Teal, Tomato Red, Trexx Black vinyl, Trexx Gear vinyl, White, Yellow, Yellow Carbon-Fiber
Welts	No Welts, Asphalt, Black, Black 'Alligator' vinyl, Black Carbon-Fiber, Black Grabber, Black 'Ostrich' vinyl, Blue Carbon-Fiber, Bomber Jacket leather, Smoke Bomber Jacket, Burgundy, Camo vinyl, Candy Red, Carbonium, Charcoal Gray, Charcoal Carbon-Fiber, Chocolate Brown, Chrome, Classic Basketweave, Cognac, Crimson, Emerald Green, Fuschia, Forest Green, Ghost Gray, Gold, Goldenrod, Gray Bomber Jacket, Gray leather, Gray Partner's, Gunmetal Vinyl, Harley Blue, Indian Brown 2017, Interceptor Blue, KTM Orange, Lavender, Lime Green, Matte Black, Metalflake Blue, Metalflake Burgundy, Metalflake Charcoal, Metalflake Fuschia, Metalflake Gold, Metalflake Green, Ninja Red, Navy Blue, Orange, Otter Brown, Oxblood, Pigeon Gray, Purple, R-80 Red, Red Bomber Jacket, Red Carbon-Fiber, Red Leather, Royal Blue, Scout Brown leather, Silver Carbon-Fiber, Sky Blue, Smoke Gray, Tan Bomber Jacket, Tan leather, Taupe, Teal, Tomato Red, Trexx Black vinyl, Trexx Gear vinyl, White, Yellow, Yellow Carbon-Fiber
Stud Bands	Black, Asphalt, Black 'Alligator' vinyl, Black Carbon-Fiber, Black Grabber, Black 'Ostrich' vinyl, Blue Carbon-Fiber, Bomber Jacket leather, Smoke Bomber Jacket, Burgundy, Camo vinyl, Candy Red, Carbonium, Charcoal Gray, Charcoal Carbon-Fiber, Chocolate Brown, Classic (Basketweave), Cognac, Crimson, Emerald Green, Fuschia, Forest Green, Ghost Gray, Gold, Goldenrod, Gray Bomber Jacket, Gray leather, Gray Partner's, Gunmetal Vinyl, Harley Blue, Indian Brown 2017, Interceptor Blue, KTM Orange, Lavender, Lime Green vinyl, Matte Black, Metalflake Blue, Metalflake Burgundy, Metalflake Charcoal, Metalflake Fuschia, Metalflake Gold, Metalflake Green, Ninja Red, Navy Blue, Orange, Otter Brown, Oxblood, Pigeon Gray, Purple, R-80 Red, Red Bomber Jacket, Red Carbon-Fiber, Red Leather, Royal Blue, Scout Brown leather, Silver Carbon-Fiber, Sky Blue, Smoke Gray, Tan Bomber Jacket, Tan leather, Taupe, Teal, Tomato Red, Trexx Black vinyl, Trexx Gear vinyl, White, Yellow, Yellow Carbon-Fiber
Studs	No Studs, Chrome, Black
Stitch Color	If Applicable, Black Stitching, Blue Stitching, Champagne Stitching, Copper Stitching, Gold Stitching, Green Stitching, Light Silver Stitching, Medium Silver Stitching, Orange Stitching, Pink Stitching, Red Stitching, White Stitching, Yellow Stitching
Logo Color	Black, Blue, Champagne, Copper, Gold, Green, Light Silver, Medium Silver, Orange, Pink, Red, White, Yellow
