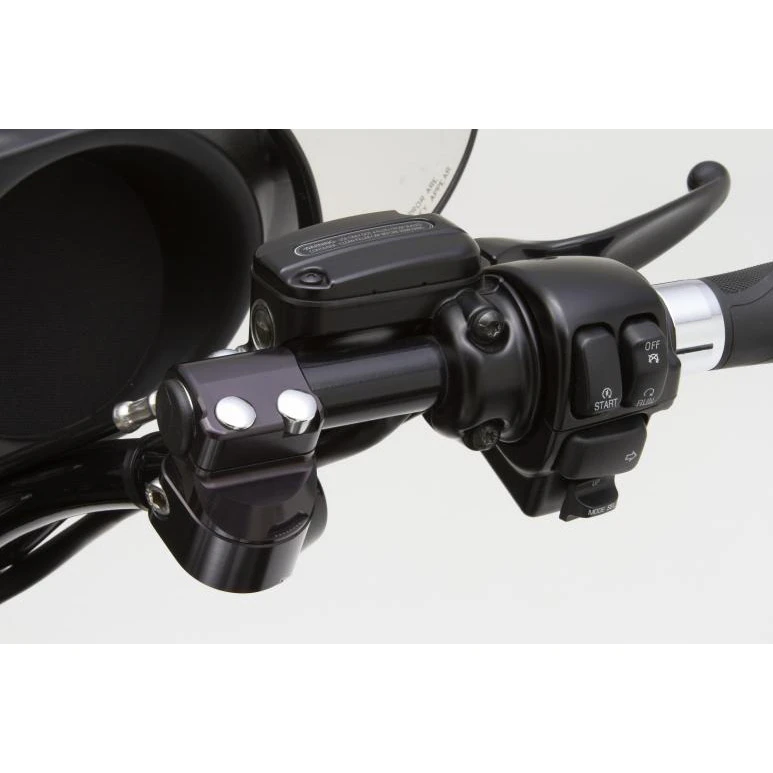

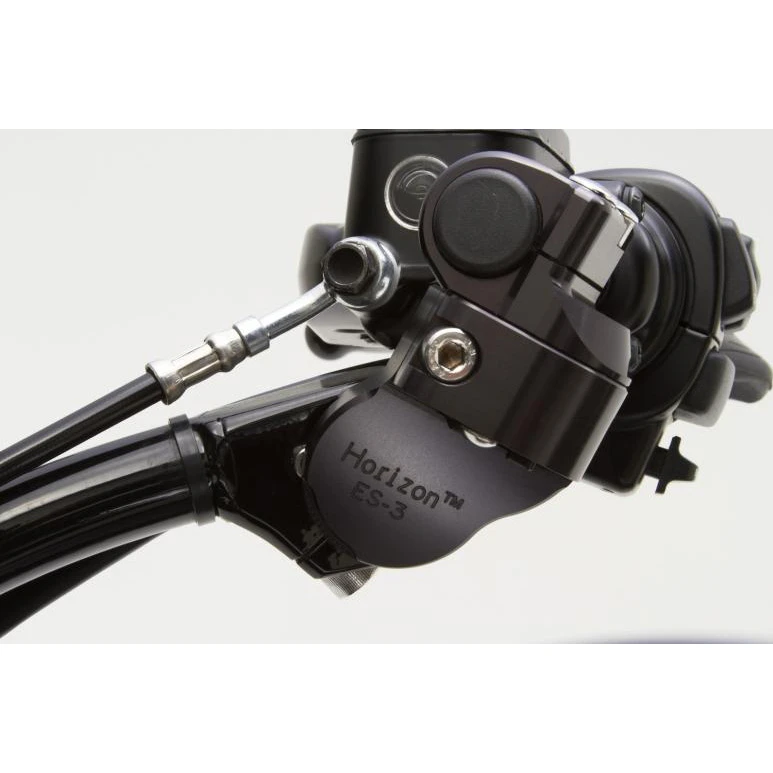

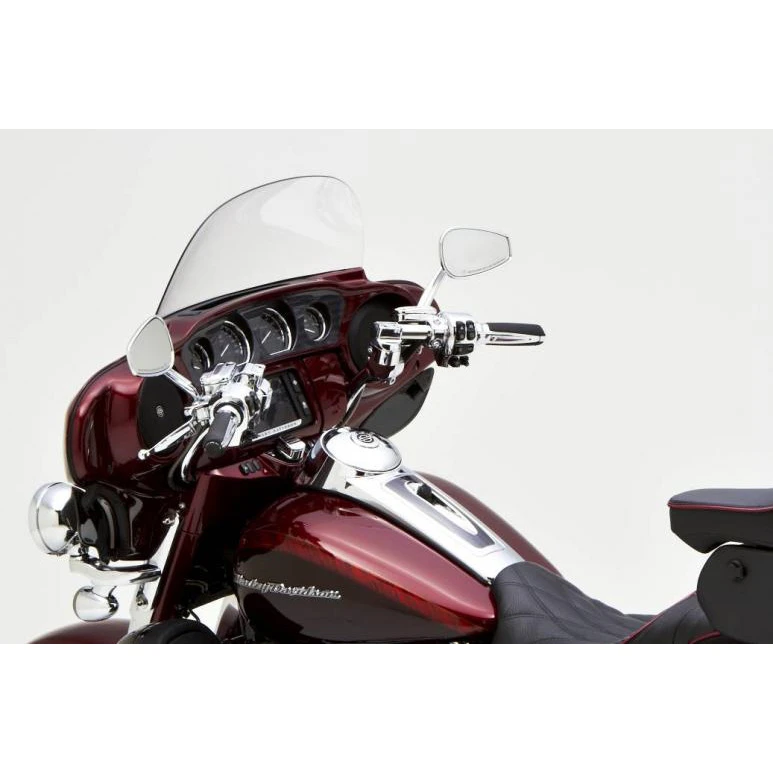

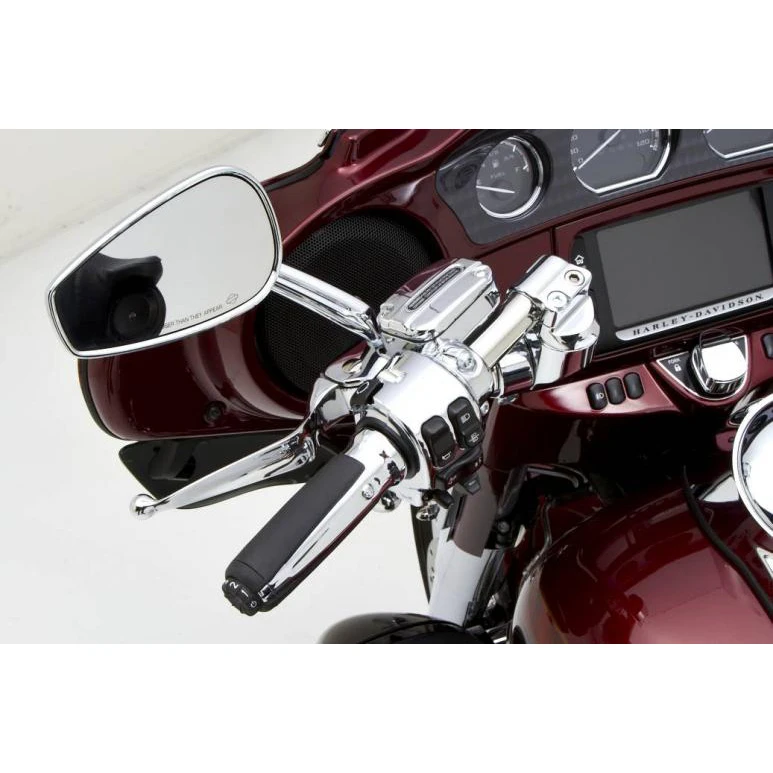

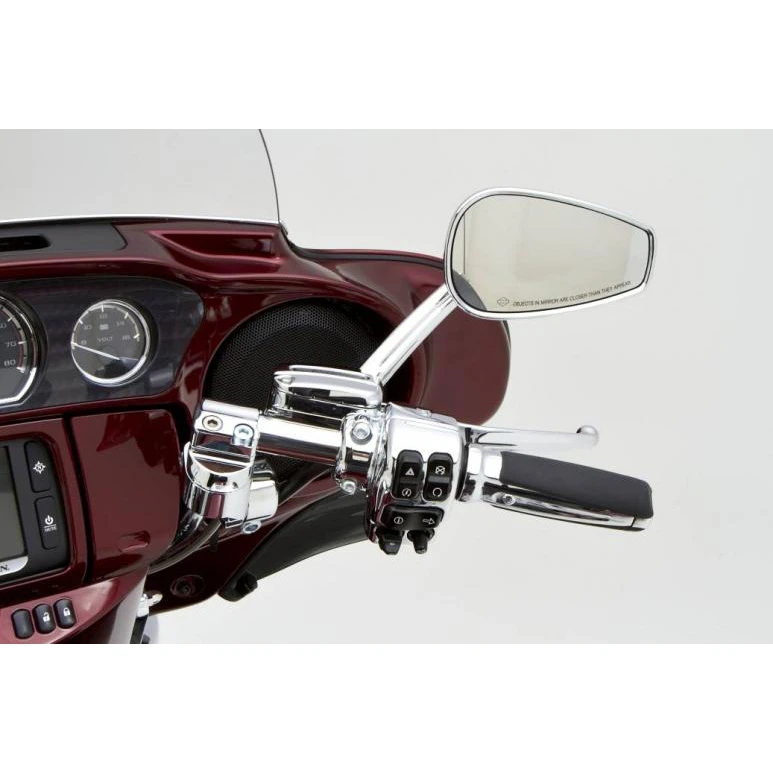

HeliBars Horizon ESX Multi Handlebar System For Harley Electra Glide/Street Glide (2008-)

HeliBars HZ10063 Horizon ESX Multi Adjustable Handlebar System is made specifically for Harley Davidson Electra/Street Glide (2008-current).

For over 25 years HeliBars has been making Sport Bikes & Sport Tourers more comfortable to ride. In 2006 they expanded their market to cruisers and in 2008 HeliBars added the now top selling Horizon Bars for the Electra Glide and Street Glide, which fits all models.

The patented Horizon design has been re-styled to fit the large fairings of the Electra Glide and Street Glide giving you the Radical Adjustability you need to improve your ride. The Horizon ES / ESX models have a swept bar and the widest central section (the clamping area) of all the Horizon products, this makes them ideal for bikes which have the wide enclosed handlebar styling of the Electra Glide and Street Glide.

The ES model offers an additional 2″ (5 cm) of height compared to the stock handlebar as well as all the wrist adjustments and rear offset adjustments that only the HeliBars Horizon products can offer. The ESX model offers the same height as the stock handlebar and less rear offset adjustment than the ES model, yet still allows the rider infinite possibilities for comfort via adjustable pivots, just like the ES model. For those that like the stock height but want to adjust your hand placement, the ESX model is for you.

Horizon System Advantages:

HeliBars is the only handlebar manufacturer that offers patented 3 axis of adjustability for superior comfort. Made from DOM high strength tubing, investment cast 8620 alloy steel clamps and pivots CNC machined from Solid 6061 Billet Aluminum HeliBars Horizon adjustable handlebars offer increased comfort and control while alleviating any concerns regarding safety. The patented design takes into account several safety features and bars are torqued into place using the highest quality hardware for maximum integrity.

• Positioning adjustable in no less than 3 ways: Bars rotate up and down, forwards and backwards, inwards and outwards
• Grip wrist angle adjustable for ultimate fit and long-range comfort
• Brake and clutch lever angles adjustable for perfect reach
• Taller and more rearset than the manufacturer’s or any aftermarket handlebar
• Ultimate touring comfort. No more wrist, shoulder, neck or back pains caused by reaching out of your comfort zone
• Vastly improved leverage and handling especially at lower speeds
• Exceptional build quality backed by a 30 day money back satisfaction guarantee
• American Made
• Available in two colors chrome and black.

ES Model Specifications:

• 0″ to 2″ inch (0 cm to 5 cm) rear-adjustable offset**
• 30″ to 34.5″ (76 cm to 87.5 cm) width** (grip end to grip end) – note that typical rider use is 31″ to 32″ wide (78.5 cm to 81 cm)
• Knurling is 3.5″ (9 cm) width – this is the distance between the center lines of the 2 knurled (cross hatched) sections which prevent bar slip/rotation
• Interior bend to bend width is 12″ (30 cm) – this is the length of the straight central section of the bar before it bends on each side (the clamped section)
• 1″ (25 mm) bar diameter
• Handlebar tubes are slotted for wiring, bars themselves are not internally wired due to pivot points
• Accommodates electronic throttle and Harley Davidson heated grips
• 2007 and earlier Harley Davidson models require a flexible brake line

Handcrafted in the USA:

HeliBars® are designed for easy installation, in most cases retaining all original cables and hydraulic lines, and requiring little or no modification to your original equipment. They are made with pride by American Craftsmen and women, and are backed by a one year warranty on all materials and workmanship, as well as our 30 day money back guarantee if you are not completely satisfied.

Greater Long Distance Comfort:

HeliBars® provides motorcyclists with better handling ergonomics and greater long distance comfort without distracting from riding excitement. HeliBars research & development engineers are riders like you, and they take meticulous care to address all of your handlebars’ deficiencies before they design the perfect fix for your bike. When you buy HeliBars®, you are benefiting from years of experience in riding comfort and performance!

Note: It is important to mention that the stock mirrors in the fairing of the Street Glide will have interference with the Horizon ESX. Since the view in the mirrors is already compromised by stock bars even before changing them for the Horizon product, customers are encouraged to use handlebar mounted mirrors to compensate. When you purchase the Horizon ES / ESX, we include plugs to fill the holes left by removing the stock mirrors. These are the true measurements taken at the wrist position, not at the fixing point or fork or triple clamp, the shape and angles of the HeliBars product give the final result required and indicated in the product description.
