HeliBars Horizon XP Multi-axis Adjustable 25mm Handlebar System

HeliBars HZ10097 Horizon XP Multi-axis Adjustable 1 inch (25mm) Handlebar System is made specifically for Harley Davidson Road Glide (most models up to 2013) and other large Cruisers with a 1″ (25mm) diameter handlebar.

The Horizon XP / XP2 models have a wider central section (the clamping area) than the Horizon Rebel models, making them suitable for use on the Harley Davidson Road Glide bikes and other large cruisers.

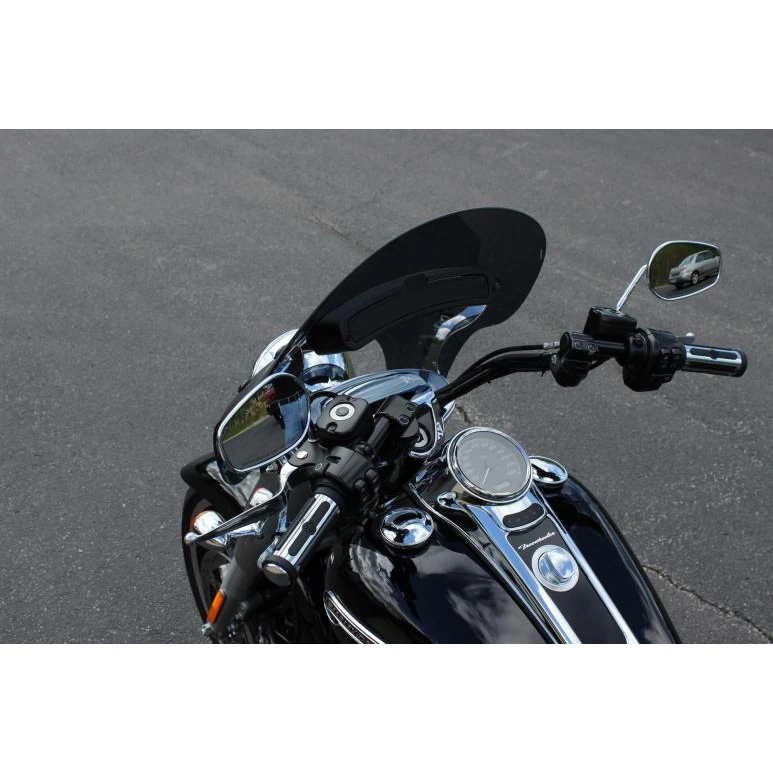

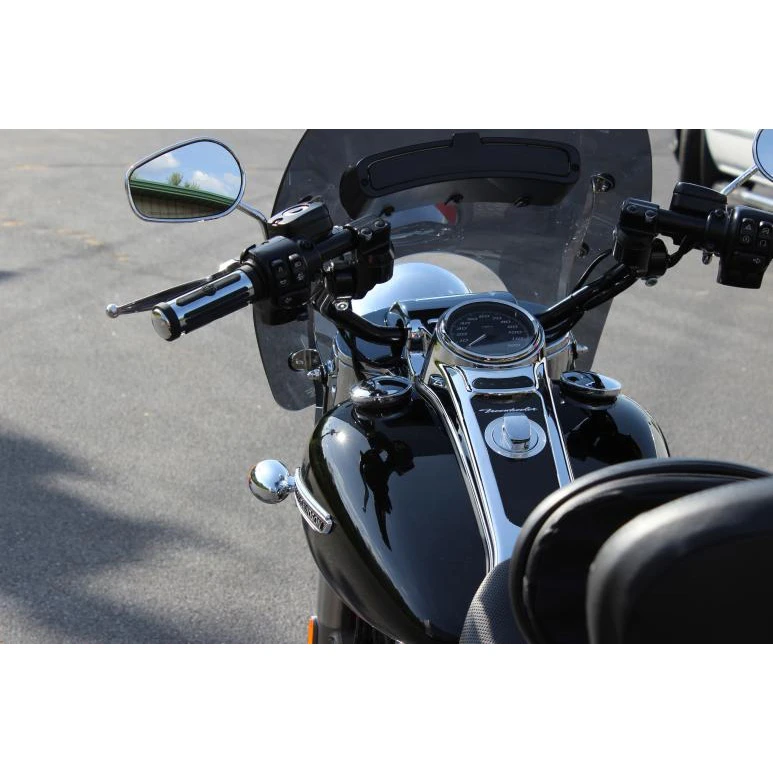

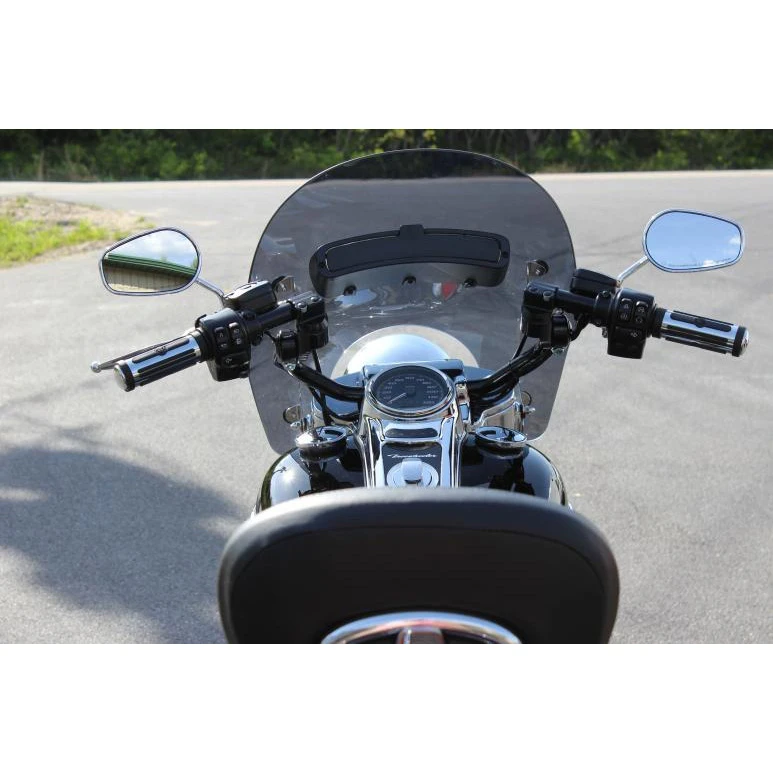

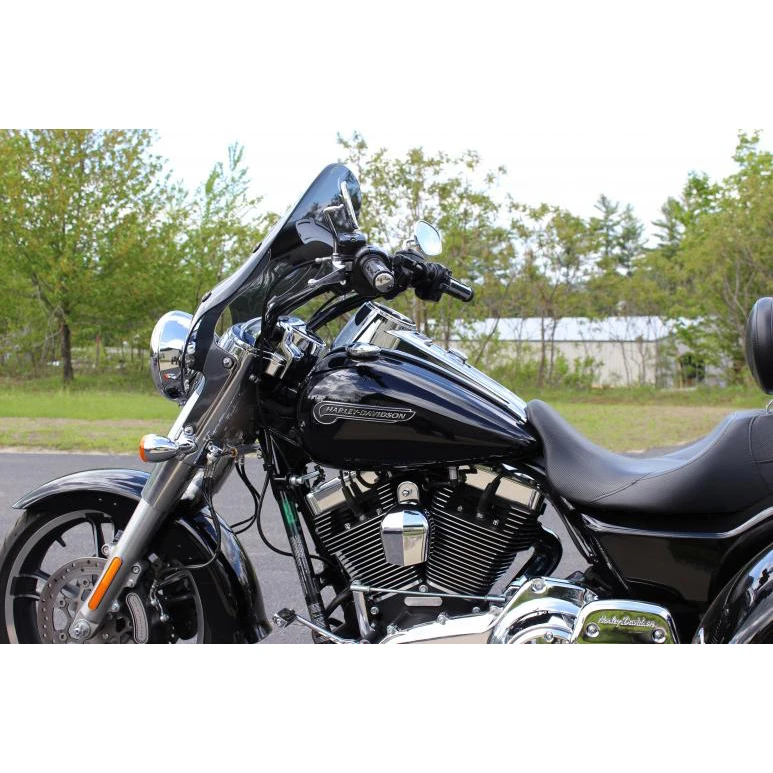

The shape of the Horizon XP / XP2 is visually recommended for larger cruisers which have a relatively open/uncluttered area around the bars (discrete clocks, etc.) and so lends itself nicely to the Harley Davidson Road Glide, Road King, Freewheeler Trike (pictured) and others. Note that the Road Glide model launched in 2015 requires the model as it has a 1 1/4″ (32mm) diameter bar.

Horizon System Advantages:

HeliBars is the only handlebar manufacturer that offers patented 3 axis of adjustability for superior comfort. Made from DOM high strength tubing, investment cast 8620 alloy steel clamps and pivots CNC machined from Solid 6061 Billet Aluminum; HeliBars Horizon adjustable handlebars offer increased comfort and control while alleviating any concerns regarding safety . The patented design takes into account several safety features and bars are torqued into place using the highest quality hardware for maximum integrity.

• Positioning adjustable in no less than 3 ways: Bars rotate up and down, forwards and backwards, inwards and outwards
• Grip wrist angle adjustable for ultimate fit and long-range comfort
• Brake and clutch lever angles adjustable for perfect reach
• Taller and more rearset than the manufacturer’s or any aftermarket handlebar
• Ultimate touring comfort. No more wrist, shoulder, neck or back pains caused by reaching out of your comfort zone
• Vastly improved leverage and handling especially at lower speeds
• Exceptional build quality backed by a 30 day money back satisfaction guarantee
• American Made

XP Model Specifications:

• 2″ to 4″ inch (5 cm to 10 cm) rear-adjustable offset**
• 30″ to 34.5″ (76 cm to 87.5 cm) width** (grip end to grip end) – note that typical rider use is 31″ to 32″ wide (78.5 cm to 81 cm)
• Knurling is 3.5″ (9 cm) width – this is the distance between the center lines of the 2 knurled (cross hatched) sections which prevent bar slip/rotation
• Interior bend to bend width is 8″ (20.5 cm) – this is the length of the straight central section of the bar before it bends on each side (the clamped section)
• 1″ (25 mm) bar diameter
• Handlebar tubes are slotted for wiring, bars themselves are not internally wired due to pivot points
• Accommodates electronic throttle and Harley Davidson heated grips
• 2007 and earlier Harley Davidson models require a flexible brake line
• Available in two colors chrome and black.

Handcrafted in the USA:

HeliBars® are designed for easy installation, in most cases retaining all original cables and hydraulic lines, and requiring little or no modification to your original equipment. They are made with pride by American Craftsmen and women, and are backed by a one year warranty on all materials and workmanship, as well as our 30 day money back guarantee if you are not completely satisfied.

Greater Long Distance Comfort:

HeliBars® provides motorcyclists with better handling ergonomics and greater long distance comfort without distracting from riding excitement. HeliBars research & development engineers are riders like you, and they take meticulous care to address all of your handlebars’ deficiencies before they design the perfect fix for your bike. When you buy HeliBars®, you are benefiting from years of experience in riding comfort and performance!

Note: These are the true measurements taken at the wrist position, not at the fixing point or fork or triple clamp, the shape and angles of the HeliBars product give the final result required and indicated in the product description.
