Platinum 1686-SLT+FRTP Gloss Black Front Pucks And Rear Air Ride Package Harley Touring

Platinum Air Suspension 1686-SLT+FRTP Gloss Black Front Pucks And Rear Air Ride Package is made specifically for Harley-Davidson FLH, FLHT (1985-current).

• Min. Retracted 9 1/4″
• Max. Extended 13.5″
• Rear Lift: 4 1/4″
• Shock Travel: 4 1/4″
• Diameter: 2 1/2″
• ABS applications may vary due to installation.
• Dimensions: 18 × 12 × 12 in
• For bike models 1985 to current.
• ABS applications may vary due to installation.
• System comes complete with one year warranty.
• Made in the U.S.A.

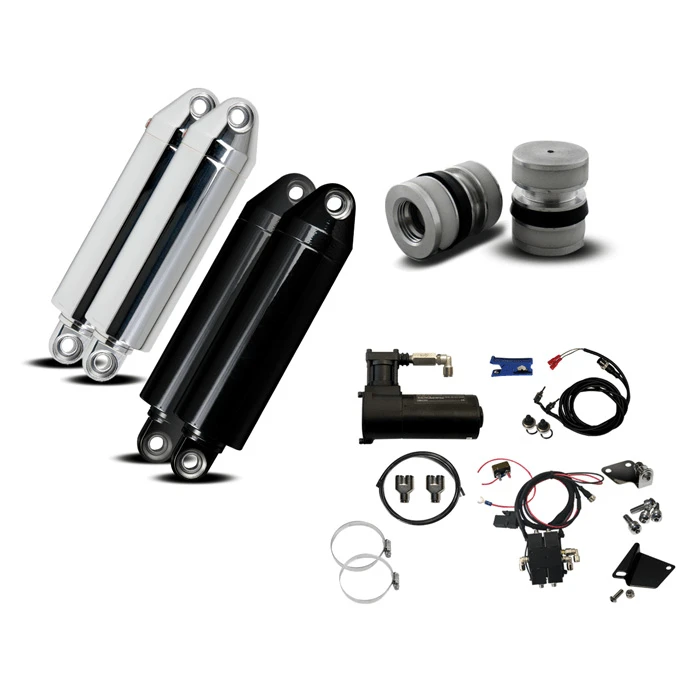

Our FLH, FLHT Front Pucks And Rear Air Ride Package allows a rider to control their ride height with positive lift however it doesn’t provide the same rebound control as our Bleed Feed system. Platinum Air Suspension offers a Simple system for most H-D, V-Twins.  Side mounted shock gives up to 4.25″ of lift.

• Two air cylinder machined from 6061 T-6 billet aluminum.

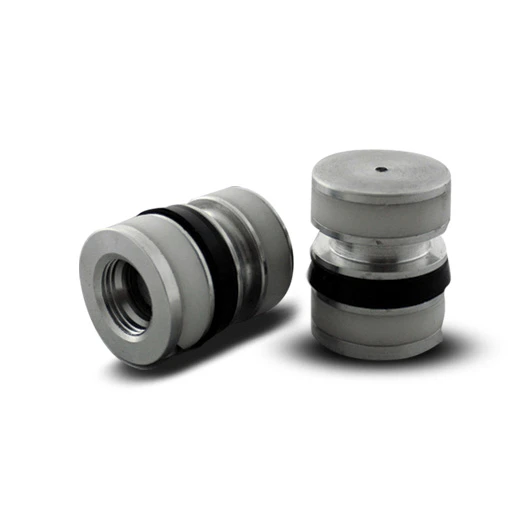

• Two 41mm or 49mm pucks.

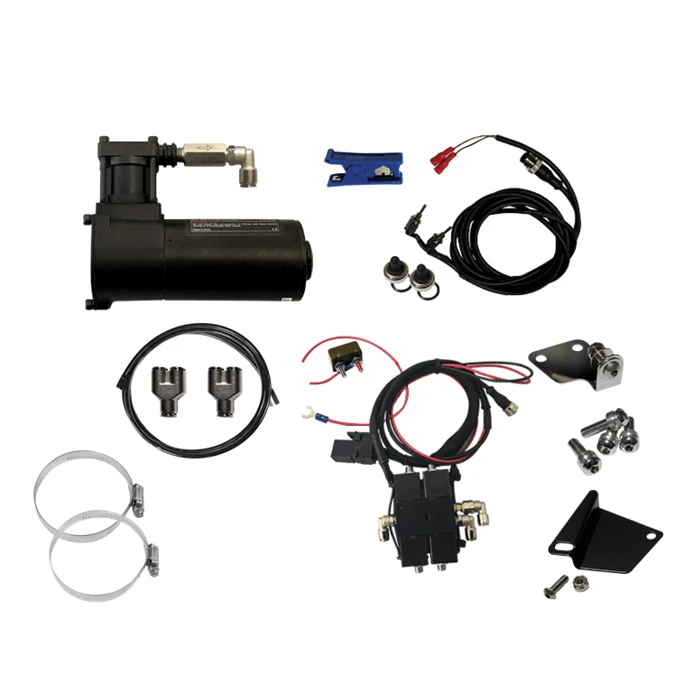

• Air-control valve.
• DOT- approved 1/4″ line and fitting.
• Switch harness.
• Air compressor.
• Hardware and line cutter.

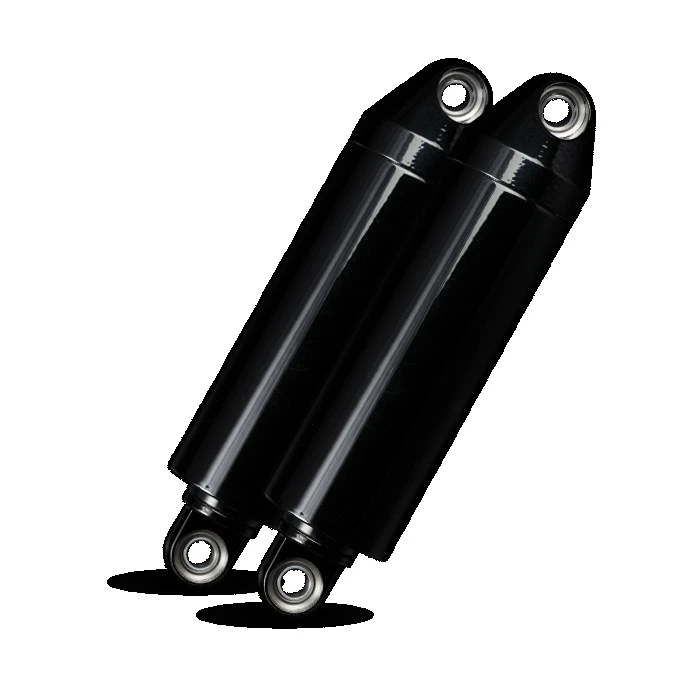

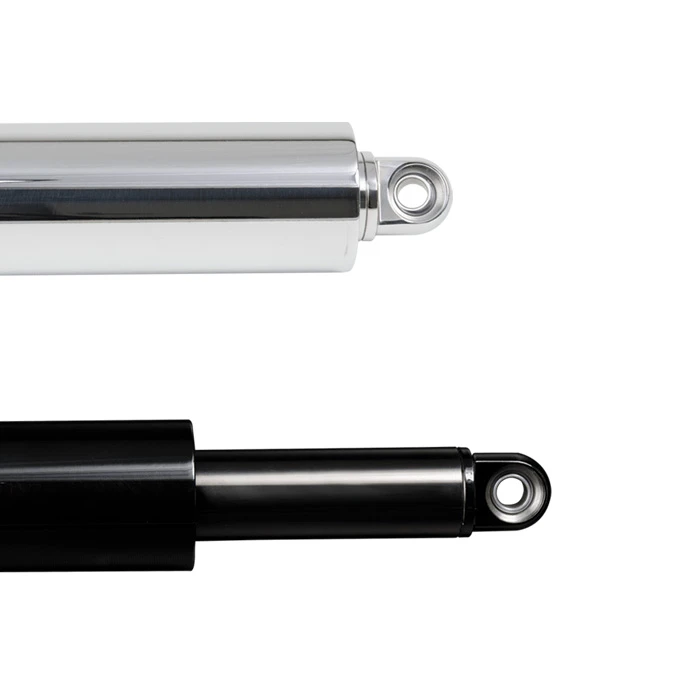

Black Out Option Customers’ now have the option to choose between chrome and black. Everything is blacked out from cyclinder to rod. It’s tough and can handle the wear and tear.
