Platinum 2018-SBF Black Air Ride Bleed Feed Suspension Kit For Harley Softail M8 (2018-)

Platinum’s 2018-SBF Black Air Ride Bleed Feed Fully Adjustable Suspension Kit is made specifically for Harley-Davidson Softail Milwaukee Eight models listed below (2018-current).

Milwaukee 8 Softail Mono Shock Kit -” Bleed Feed” system will allow you to control your rides’ height and rebound. This system is controlled by positive pressure at all times. It is also easily adjusted at the flip of a switch for complete comfort for the rider’s weight or road conditions.

The Bleed Feed Softail Eight Mono Shock Kit is not the only system in the Platinum Air Suspension line-up as it also offers the Simple system, which features the same high-level of componentry as the Bleed Feed but does not offer rebound control. However, users are still able to control the ride height through pump and release pressure. The most popular of the Bleed Feed kits is the unit designed for use on FL Bagger models, and like all of Platinum’s offerings there is a wide choice of finishes on the shocks. As standard there is the option of chrome, polished, powder coated or satin finishes and by special request powder coating in the specific color choice of the customer.

• Min. Retracted 10 7/8″
• Max. Extended 12 7/8″
• Rear Lift: 4″
• Shock Travel: 2″
• Diameter: 3 1/4″
• One year warranty
• Made in the U.S.A.

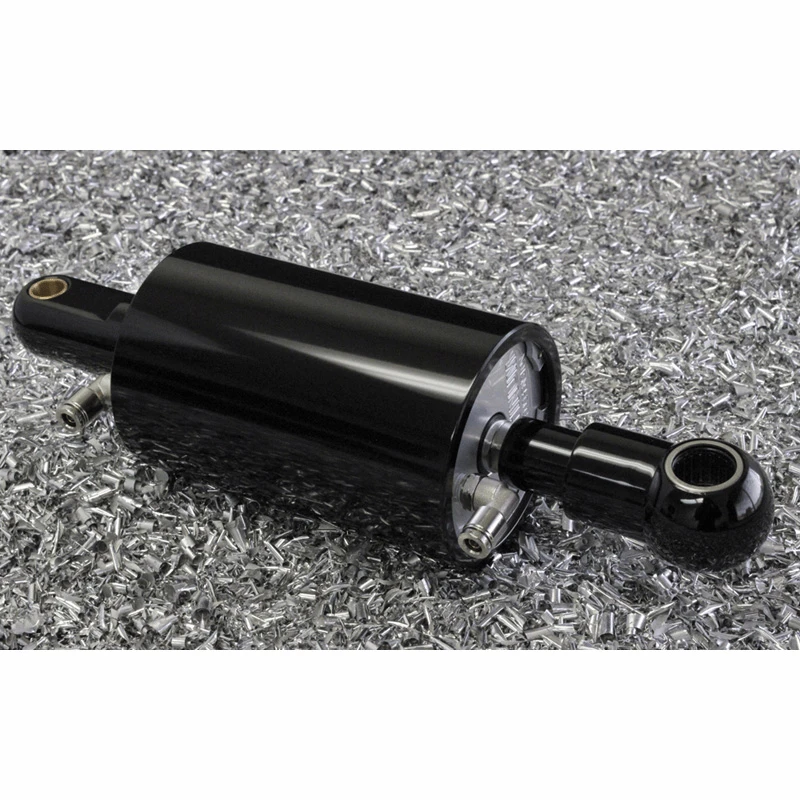

• Air cylinder machined from 6061 T-6 billet aluminum

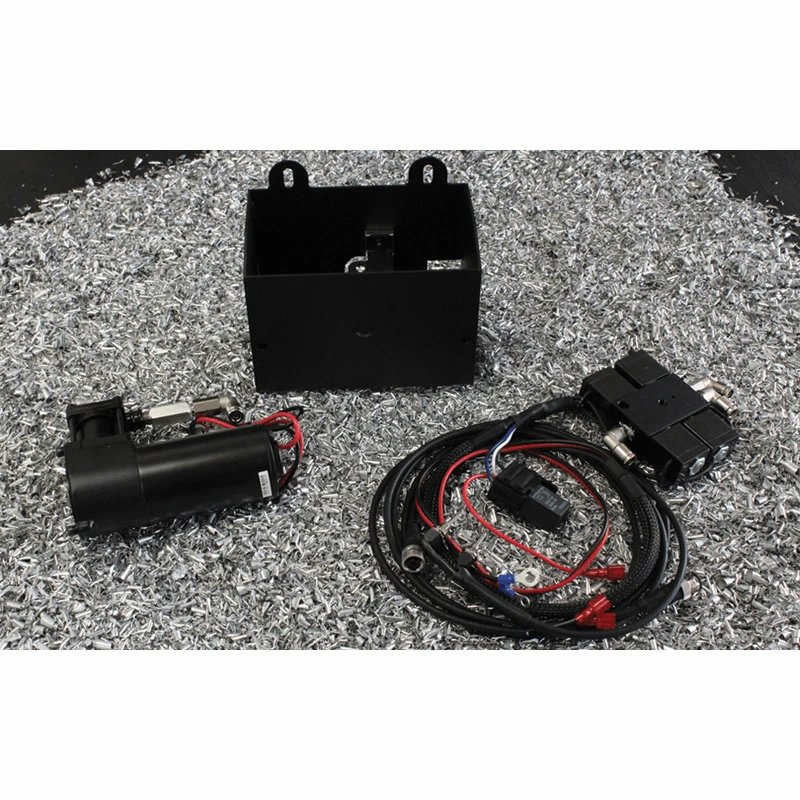

• Air-control valve.
• DOT- approved 1/4″ line and fitting
• Switch harness
• Air compressor
• Hardware and line cutter.

FXDR / FXDR Softail

FXD Dyna Super Glide

FXDB Dyna Street Bob

FXDG Dyna Glide/Sturgis

FXDL Dyna Low Rider

FXDWG Dyna Wide Glide

FXDX Dyna Super Glide Sport

FXDXT Super Glide “T” Sport

FXE Superglide Electric Start

FXEF Fatbob

FXLR FX Lower Rider/Evolution

FXR Rubber Mount Super Glide

FXRS FXR Sport

FXRS-CON FXR Sport Convertible

FXRS-SP Low Rider Sport Edition

FXRT FXR Touring

FXS Low Rider/Shovelhead

FXSB Lowrider Belt

FXST Softail

FXSTB Night Train

FXSTC Softail Custom

FXSTD Softail Deuce

FXSTS Springer Softail

FXWG Wide Glide

FXC Rocker

FXCW Rocker (w/ 2-up optional seating)
