Platinum 8699-EBF+FRTP Polished Air Ride Bleed Feed Suspension Kit, Pucks EVO / Softail ’84-’99

Platinum Air Suspension PAS-8699-EBF+FRTP Polished Air Ride Bleed Feed Suspension Kit (Pucks) is made specifically for Harley-Davidson EVO / Softail (1984-1999).

• Min. Retracted 9″
• Max. Extended 11″
• Rear Lift: 5″
• Shock Travel: 2″
• Diameter: 2 3/4″
• ABS applications may vary due to installation.
• Dimensions: 18 × 12 × 12 in

This system is Fully Adjustable for your Evolution Softail years 1984 to 1999. It gives you up to approximately 4″ to 5″ of lift and dump depending on stock or aftermarket evolution custom softails or special constructions.

The front air ride puck kit is made from the same quality components as the rest of our products. The front air ride system will allow you to control your air ride lift and dump approximately 4′ depended if you need this amount of travel.This system is fully adjustable independently by two separate switches for the front and rear suspension.

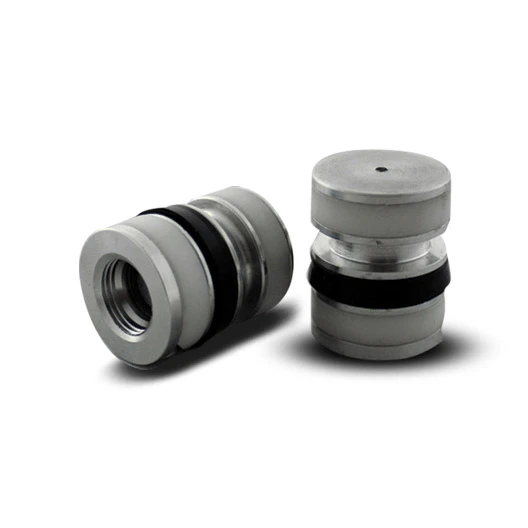

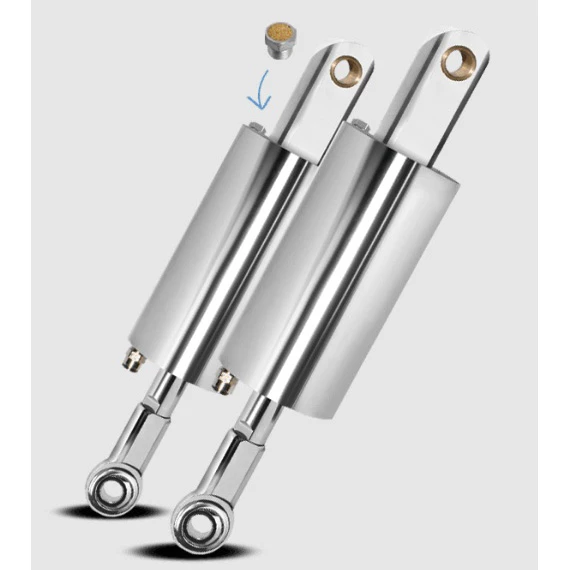

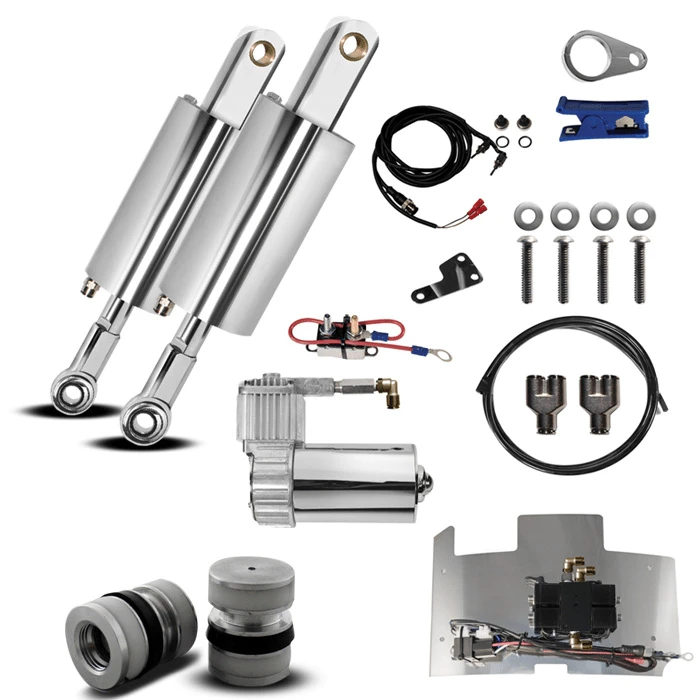

• Two air cylinders and two pucks machined from 6061 T-6 billet aluminum.
• Stainless steel rods and end caps.
• Stainless steel splashguard complete with air-control valve assembly fastened to it.
• DOT- approved 1/4” line and fitting.
• Switch harness.
• Air compressor.
• Hardware and line cutter.
• One year warranty.
• Made in the U.S.A.

The Bleed Feed is not the only system in the Platinum Air Suspension line-up as it also offers the Simple system, which features the same high-level of componentry as the Bleed Feed but does not offer rebound control. However, users are still able to control the ride height through pump and release pressure. The most popular of the Bleed Feed kits is the unit designed for use on FL Bagger models, and like all of Platinum’s offerings there is a wide choice of finishes on the shocks. As standard there is the option of chrome, polished, powder coated or satin finishes and by special request powder coating in the specific color choice of the customer.
